Super Bright RGB LED (Common Cathode)
Water Clear 5mm Super Bright Common Cathode RGB LED. Can produce many colors using Red, Green & Blue built-in LEDs including super bright White, Red, Green, Blue, Yellow, Cyan, Violet, etc. Varying the brightness of each LED can produce many more colors. Cathode is the longest pin.
Specifications
 Brightness: 10,000 mcd
Voltage Supply Red: 2V Max: 2.4V
Voltage Supply Green: 3.4V Max: 3.8V
Voltage Supply Blue: 3.4V Max: 3.8V
Current: 20mA
Water Clear
Common Cathode
Size: 5mm |
|
|
|

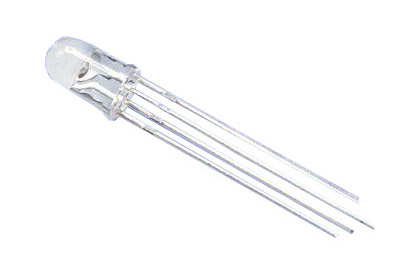

Super Bright RGB LED (Common Anode)
Water Clear 5mm Super Bright Common Anode RGB LED. Can produce many colors using Red, Green & Blue built-in LEDs including super bright White, Red, Green, Blue, Yellow, Cyan, Violet, etc. Varying the brightness of each LED can produce many more colors. Anode is the longest pin.
Specifications
Brightness: 10,000 mcd
Voltage Supply Red: 2V Max: 2.4V
Voltage Supply Green: 3.4V Max: 3.8V
Voltage Supply Blue: 3.4V Max: 3.8V
Current: 20mA
Water Clear
Common Anode
Size: 5mm |
|
|
|
Super Bright Clear White LED
Amazingly super bright water clear 5mm WHITE LED. It has a blinding brightness of 15,000 mcd and consumes only 20mA at 3V supply. Color Temperature: 6000-6500K.
|
|
|
|
|
