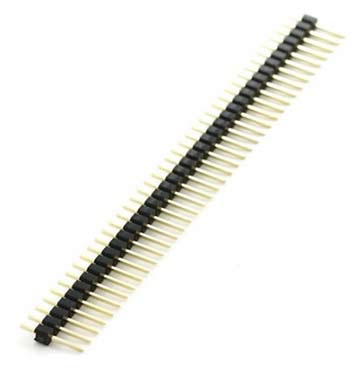

40 PIN male header connector with standard 2.54mm / .1" spacing. Can be cut to any size, simply bend and break to custom size. Compatible with breadboards and protoboard PCBs.

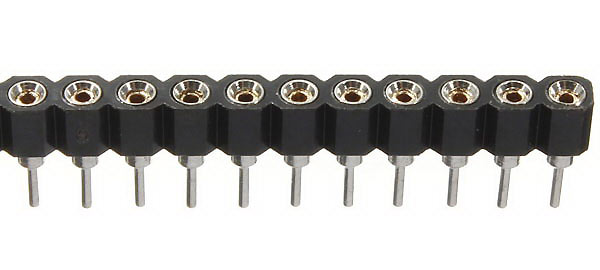

40 PIN Machined Break Away Female Header Connector

40 PIN machined female header connector that may be cut to any size and used as IC socket. Header has round holes and comes with standard 2.54mm / .1' spacing.

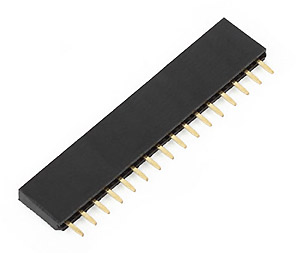

1x16 Female Header Connector

1 x 16 gold-plated female header with standard 0.1' spacing and through-hole mounting. This header connects perfectly with break away male header connectors.

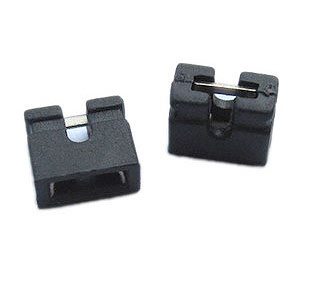

Jumper - 2 PIN

2-PIN female jumper with standard .1' spacing for male header connectors.

3.5mm Stereo Audio Jack - Panel Mount

Standard 3.5mm stereo audio jack with switch. PCB / panel mount.

Miniature Push Button Tactile Switch

Miniature tactile switch. These are high quality momentary switches. Perfect as a tactile reset switch. Mounts directly into standard bread boards. Rated up to 50mA.

Dimensions: 6 x 6 x 4.3 mm

Current Rating: 50 mA

Panel Mount SPDT Switch

General purpose Mini SPDT Switch rated at DC 50V 1A. Dimensions: 20mm x 6mm x 5mm (W x D x H). 3mm Pin Pitch.

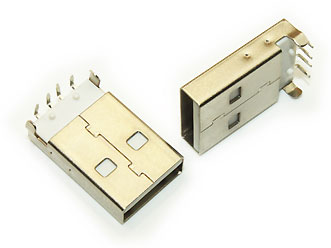

USB Male Connector Type A

Mini PCB Mount SPDT Switch

General purpose PCB mount Mini SPDT Switch rated at DC 50V 1A. Dimensions: 8.75 mm x 4.5 mm x 4.5 mm (W x D x H). 2mm Pin Pitch.

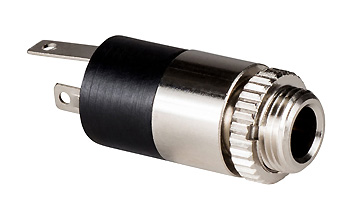

3.5mm Stereo Audio Jack - Chassis Mount

Chassis mount 3.5mm stereo audio jack. Made in Japan.

USB 3.0 Male Connector

High quality USB 3.0 male connector with 9-PIN pads that are easy to solder wires to.

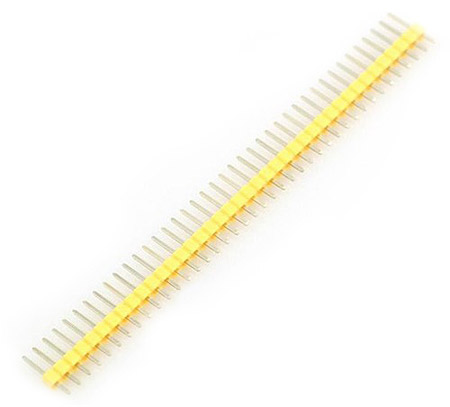

40 PIN Break Away Male Header Connector - Yellow

40 PIN yellow male header connector with standard 2.54mm / .1" spacing. Can be cut to any size, simply bend and break to custom size. Compatible with breadboards and protoboard PCBs.

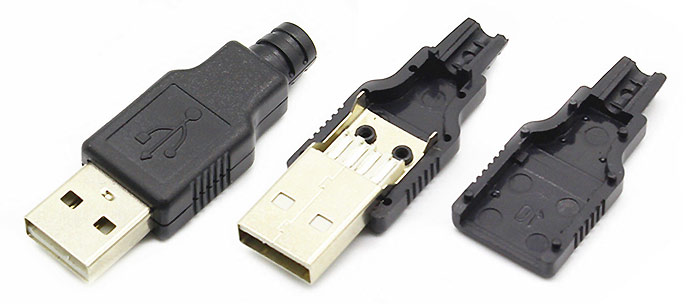

USB Male Connector Type A with Cover

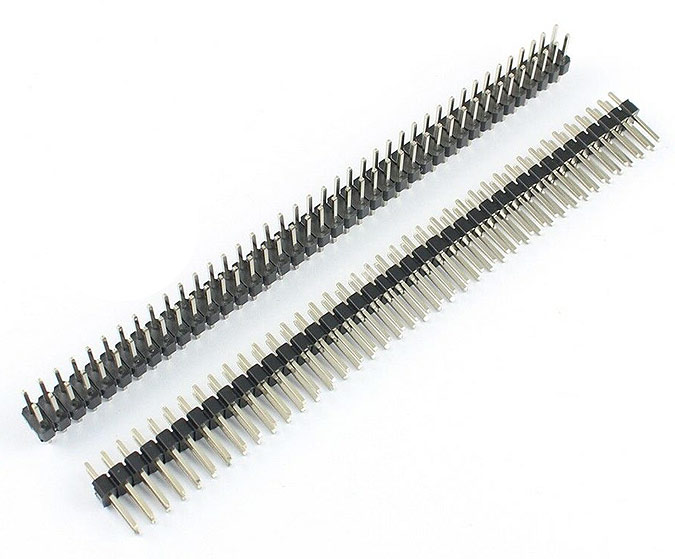

2x40 PIN Break Away Double Row Male Header Connector - Straight

2 x 40 PIN double row male header connector with 2mm spacing. Can be cut to any size, simply bend and break to custom size.

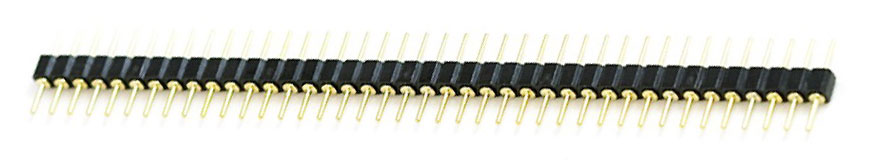

40 PIN Machined Break Away Male Header Connector

Gold plated 40 PIN machined male header connector with standard 2.54mm / .1' spacing. Bend and break to any size.

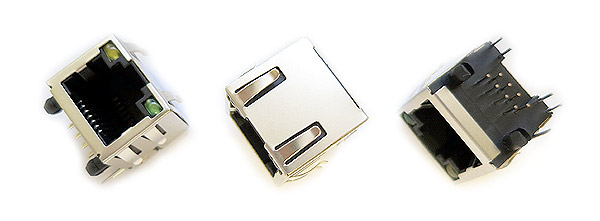

RJ45 Ethernet Jack

Shielded RJ45 ethernet jack with built in transformer and two status LEDs.

1x4 Female Header Connector

1 x 4 gold-plated female header with standard 0.1' spacing and through-hole mounting. This header connects perfectly with break away male header connectors.

1x6 Female Header Connector

1 x 6 gold-plated female header with standard 0.1' spacing and through-hole mounting. This header connects perfectly with break away male header connectors.

1x8 Female Header Connector

1 x 8 gold-plated female header with standard 0.1' spacing and through-hole mounting. This header connects perfectly with break away male header connectors.

Surface Mount Tactile Switch

High quality surface mount tactile switch. Features sturdy low-profile metal construction.

Dimensions: 4 x 4 x 1.5 mm

Current Rating: 50 mA

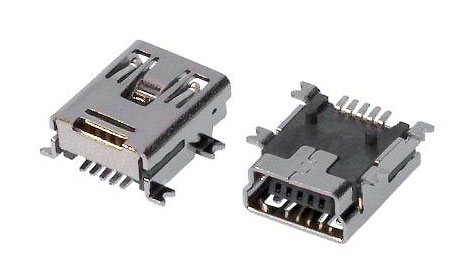

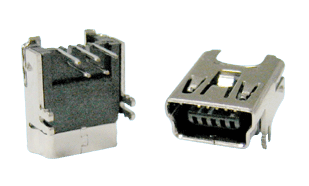

Micro USB Female Connector Type B - SMD

5-PIN SMD Micro Female USB connector Type B.

Micro USB Female Connector Type B

5-PIN Plated Through Hole Micro Female USB connector Type B.

Mini Tactile Switch (Pack of 2)

High quality momentary mini tactile switch. Mounts directly into standard bread boards. Rated up to 50mA. This item is a set of two tactile switches.

Dimensions: 3 x 6 x 5 mm

Current Rating: 50 mA

Miniature 3.5mm Stereo Audio Jack - PCB Mount

High quality miniature 3.5mm stereo audio jack.

4-DIP Switch

DIP switch with 4 individual switch positions. The pins have .1' spacing - fits great into a breadboard! Works great as general control switches.

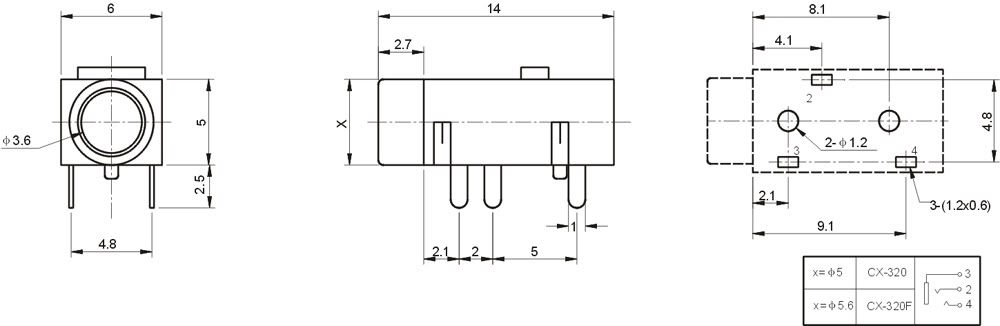

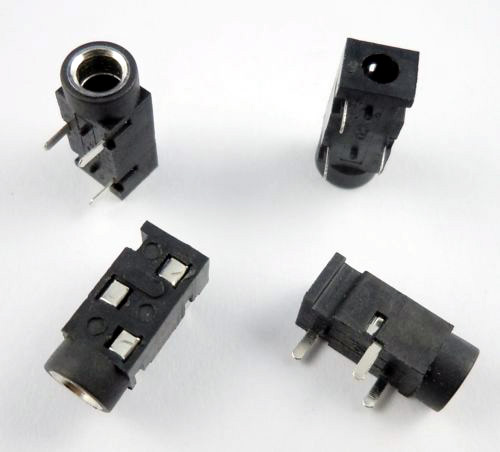

3.5mm Stereo Audio Jack - PCB Mount

Low profile 3.5mm stereo audio jack.

6-DIP Switch

DIP switch with 6 individual switch positions. The pins have .1' spacing - fits great into a breadboard! Works great as general control switches.

USB Female Connector Type B

USB Type 'B' Female connector. The 4 connection pins have .1' spacing allowing it to be inserted into development boards and perf boards with mild modification. You can either drill two 80mil holes for the support posts, or cut them off completely.

USB Female Connector Type A

USB Type 'A' Female PCB mount connector. For use with any PCB that will be used with a Type A to Type A USB cable or Type A to Type B.

RCA Connector

Right-angle RCA PCB mount connector.

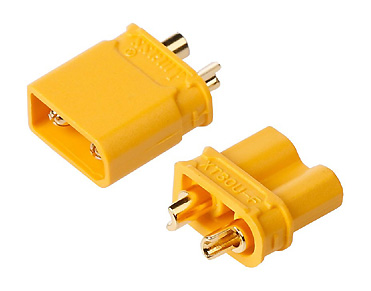

XT30 30A Male Female Power Connector Set

XT30 30A male and female power connector set with heat shrink for LIPO batteries. Handles up to 30A of current, ideal for RC quadcopters, helicopters, planes, etc.

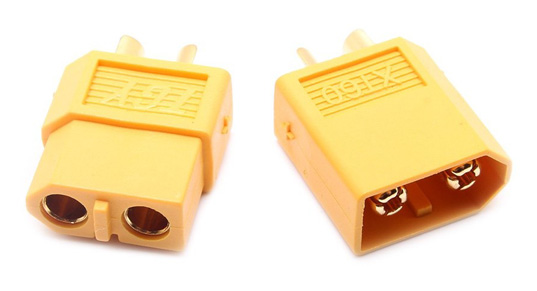

XT60 60A Male Female Power Connector Set

XT60 60A male and female power connector set with heat shrink for LIPO batteries. Handles up to 30A of current, ideal for RC quadcopters, helicopters, planes, etc.
