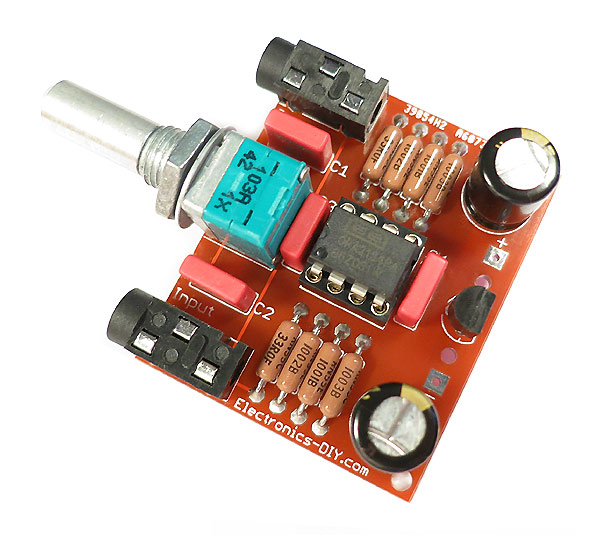

Audiophile Headphone Amplifier Kit
Audiophile Headphone Amplifier Kit
Audiophile headphone amplifier greatly improves the sound quality, adding three dimensional layered soundstage to any audio source whether it is your desktop computer, laptop, phone, MP3 player, Raspberry Pi, XBOX, SONY Playstation, etc. The kit is built using premium audio grade components such as High Precision Ti OPA2134 opamp for excellent audio soundstage, Ti TLE2426 rail splitter, Ultra-Low ESR 470uF Panasonic FM filtering capacitors, High quality German WIMA input and decoupling capacitors and Vishay Dale resistors. 8-DIP machined IC socket allows to roll & swap OPA2134 with many other dual opamp chips and experience different sound signatures (such as OPA2132, OPA2107, OPA2277, OPA2228, OPA2604, dual OPA132, OPA1612, OPA627, LM4562, TL072, NE5532, and many more). Headphone amplifier is small enough to fit in Altoids tin box, and thanks to low power consumption may be supplied from a single 9V battery.



     High Precision Ti OPA2134 opamp for excellent audio soundstage
     Premium quality stereo volume control potentiometer
     Ti TLE2426 rail splitter provides dual rail supply from single battery operation
     Ultra-Low ESR 470uF Panasonic FM filtering capacitors (Made in Japan)
     High quality WIMA input and decoupling capacitors (Made in Germany)
     Audio grade Vishay Dale resistors
     8-DIP machined IC socket allows to swap NE5532 with many other opamp chips
     Can be used to drive audiophile headphones such as HD600, HD650, HD660S, HD700, HD800, DT880, DT770, DT990, DT1770, DT1990, T1, etc.
     Input voltage supply 4-32V. Can be supplied from a single 9V or 4.2V LIPO battery
     Low power consumption (14mA)
     High quality 3.5mm audio sockets for headphones and input
     Comes with 9V battery clip
     Compact form factor (4cm x 3.3cm)
Larger Quantities?
Get Quote
Price:$39.95
In Stock:YES
