1000m 433MHz RF Transmitter Module
This tiny RF Transmitter module is great for building your own wireless remote control or wireless link. Remote control that allows to control different devices can be easily implemented with wide range of encoder/decoder chips (such as HOLTEK HT12E + HT12D or MC145026 + MC145027 available in our store) or PIC / AVR microcontrollers. RF Module can also be used for sending data at up to 9.6KB/s.
Specifications
 TTL Compatible Input
Voltage Supply: 3 - 12V
Power Consumption: 5 - 45mA
Quiescent Current: 20uA
Max Transfer Rate: 9.6KB/s
Operating Frequency: 433MHz
Transmitting Range: 1000m
Dimensions: 19mm x 19mm x 8mm |
|
|
|
76MHz - 110MHz FM Transmitter with Booster
Fully assembled and tested three stage FM transmitter with an on board signal booster for increased transmitting range. It broadcasts audio on 76MHz - 110MHz FM frequency via included on board microphone or from MP3 player, Phone, iPod, Computer, Laptop, CD Player, TV, Satellite Receiver via on board 3.5mm connector. It transmit sound with excellent clarity throughout your home, office, yard, camp ground, etc. Transmitter uses one 2SC9014 and two 2SC9018 low noise RF transistors. Add 500mW FM / VHF Transmitter Amplifier / Booster for even longer range.
Specifications
Frequency: 76MHz - 110MHz
Audio Input: Microphone / 3.5mm Audio Jack
Voltage Supply: 3 - 12V DC Input
PCB Dimensions: 60mm x 40mm (W x H)
|
|
|
|

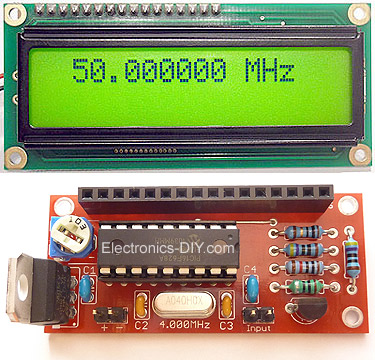

60MHz Frequency Meter / Counter Kit - Blue Backlight LCD
60MHz Frequency Meter / Counter kit measures frequency from 10Hz to 60MHz with 10Hz resolution. It is extremely useful bench test equipment for testing and measuring frequency of oscillators, transmitters, radio receivers, function generators, crystals, etc. Counter provides exceptionally stable readings and has excellent input sensitivity thanks to onboard amplifier and TTL converter. It can be even used for measuring weak signals from crystal oscillators. With the addition of simple prescaller it is possible to measure frequency up to 1GHz or more. Counter's measuring range has now been extended form 50MHz up to 60MHz.
Click here for more information and schematic
Specifications
Voltage Supply: 7V - 16V
Power Consumption: 80mA with LCD backlight
Frequency Measurement: 10Hz - 60MHz
Measurement Resolution: 10Hz
Component List
1x 16 x 2 LCD Display with Blue Backlight
1x PIC16F628A Programmed Microcontroller
1x PCB
1x 18-DIP IC Socket
1x 4.000MHz Crystal
1x LM7805 5V Voltage Regulator
1x 1 x 16 Gold Plated Female Header (for PCB)
1x 1 x 16 Gold Plated Male Header (for LCD)
2x 1 x 2 Gold Plated Male Header (for LCD)
1x BF199
1x 10uH Inductor
1x 10K Trimmer
1x 10K 1% Metal Film Resistor
2x 470 1% Metal Film Resistor
1x 33 1% Metal Film Resistor
1x 100uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
2x 10pF Ceramic Capacitor
1x Manual with Schematic
Related Products
1Hz - 2MHz XR2206 Function Generator Kit
|
|
|
|
500mW FM / VHF Transmitter Amplifier / Booster Kit
High performance low noise 500mW RF amplifier / booster kit for boosting output power all low power FM transmitters such as BA1404, BH1417, BH1415, 433MHz transmitter modules, etc. The amplifier chip is an integrated circuit containing multiple transistor stages and all other parts conveniently within a single small package. Boosting your FM transmitter has never been easier and the output signal can also directly drive 2n4427 or 2n3866 transistors for 1W or 5W of RF output power.
Specifications
Output Power: 500mW
Input Frequency: 50MHz - 1300MHz
Voltage Supply: 9-12V
PCB Dimensions: 15mm x 25mm
Component List
1x 500mW RF Amplifier Chip
1x PCB
1x 10uH Inductor
3x 1nF Capacitor
1x 120R Resistor |
|
|
|
BA1404 HI-FI Stereo FM Transmitter - Special Edition Kit
Be 'On Air' with your own radio station! BA1404 HI-FI Stereo FM Transmitter - Special Edition Kit is an exciting transmitter that will broadcast high quality stereo signal in 88MHz - 108MHz FM band. It can be connected to any type of stereo audio source such as iPod, Computer, Laptop, CD Player, Walkman, Television, Satellite Receiver, Tape Deck or other stereo system to transmit stereo sound with excellent clarity throughout your home, office, yard or camp ground. Add 500mW FM / VHF Transmitter Amplifier / Booster for even longer range.
Special Edition BA1404 HI-FI Stereo FM Transmitter Kit includes premium components with audio grade gold capacitors, 1% Metal Film Resistors and quality PCB with Red Solder Mask and Plated-Through Holes. The kit is based on the popular BA1404 stereo broadcaster IC which contains all the complex circuitry for generating the stereo FM signal. 38 KHz crystal provides a rock solid stability of sub-carrier for stereo signal.
Specifications
Voltage Supply: 1.5 - 3V DC Input (Single or Two AA/AAA batteries)
Frequency: 88MHz - 108MHz
Audio Input: Stereo
PCB Dimensions: 49mm x 32mm (W x H)
Component List
1x BA1404 Stereo FM Transmitter IC
1x PCB with Red Solder Mask and Plated-Through Holes
1x 38KHz Crystal Oscillator
1x 5.5T Variable Precision RF Coil
1x 10uH Inductor
4x 10uF/50V Gold Audio Capacitors
4x 1nF Ceramic Capacitors
2x 1nF Mylar Capacitors
1x 220pF Ceramic Capacitor
5x 10pF Ceramic Capacitors
2x 47K 1% Metal Film Resistors
2x 27K 1% Metal Film Resistors
1x 150K 1% Metal Film Resistor
1x 5.6K 1% Metal Film Resistor
1x 270 1% Metal Film Resistor
1x Instructions |
|
|
|

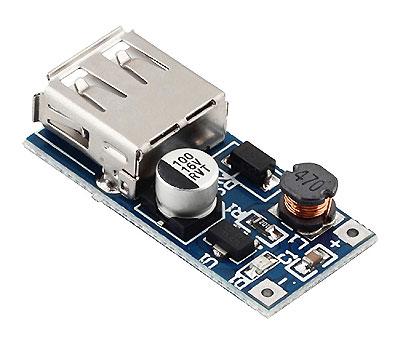

1-5V to 5V DC to DC Step Up Power Supply Board
This amazing small DC to DC Step Up power supply board allows to power 5V USB devices from just 1V to 5V power source inputs. Single AA battery will provide 5V with 200-300mA current, while two AA batteries will provide 5V with as much as 500-600mA of current! Use all the power out of old batteries that would otherwise go to waste. Use solar panels, 3.7V LIPO batteries or AA batteries to build power packs to charge all your USB electronic devices through onboard USB connector. Board comes fully assembled.
Voltage Input: 1-5V DC
Voltage Output: 5V through USB connector
Current: 200-300mA from one AA battery / 500-600mA from two AA batteries
Efficiency: 96%
Dimensions: 34 x 15 x 7mm |
|
|
|
Voltmeter Ammeter Kit - Blue Backlight LCD
Voltmeter Ammeter is a great kit to measure voltage and current at the same time. It measures 0-70V or 0-500V voltage with 100mV resolution and current from 0 to 10A. It's a perfect addition to any power supply, battery chargers and other electronic projects where voltage and current must be monitored. Kit uses PIC16F876A microcontroller with built-in ADC (Analog to Digital Converter) to sample voltage with current and display it on 16 x 2 backlighted LCD display. It comes with all the parts required to build high quality kit, including double-sided PCB with beautiful red solder mask and plated through holes. With slight modification it is possible to measure higher voltage and current. To measure voltage that is higher than 70 Volts simply replace R3 6.8K resistor with included 1K resistor. This will allow to measure up to 500 Volts. To measure current that is higher than 10A simply replace 0.1 Ohm 5W power resistor with higher wattage resistor. For example 20W 0.1 Ohm resistor will allow to measure up to 20 Amperes. Kit can also measure AC voltage if rectifier bridge is added to voltage input as well as measure and be supplied by the same power source.
Specifications
Voltage Input: 0 - 70V / 0 - 500V
Current Input: 0 - 10A
Voltage Supply: 6 - 30V
Current Consumption: 30mA
Component List
1x 16 x 2 LCD Display with Blue Backlight
1x PIC16F876A - Programmed microcontroller
1x High Quality PCB with red solder mask and plated through holes
1x 28-DIP IC Socket
1x 4MHz Resonator
1x 16 x 1 Gold Plated Male Header
1x 16 x 1 Gold Plated Female Header
1x 4 x 1 Gold Plated Header
1x LM7805 5V Voltage Regulator
1x 10K Trimmer Potentiometer
1x 4 x 10K Network Resistor
2x 100K 1% Metal Film Resistor
2x 6.8K 1% Metal Film Resistor
1x 1K 1% Metal Film Resistor
1x 33 1% Metal Film Resistor
1x 0.1 Ohm 5W Power Resistor
1x 100uF Panasonic Capacitor
1x 100nF Multilayer Ceramic Capacitor
1x Manual with Schematic |
|
|
|

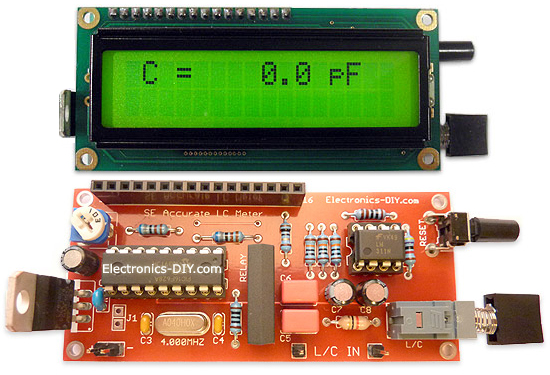

Special Edition Accurate LC Meter Kit with Blue Backlight LCD
Build your own Special Edition Accurate LC Meter (Inductance Meter / Capacitance Meter) and start making custom made precision coils and inductors. Accurate LC Meter allows to measure incredibly small inductances making it perfect tool for making all types of RF coils and inductors. It can measure inductance starting from only 10nH - 1000nH, 1uH - 1000uH, 1mH up to 100mH and capacitance from 0.1pF up to 900nF. Special Edition LC Meter includes top notch high precision components that are only found in premium quality kits. It includes high quality double-sided printed circuit board (PCB) with red solder mask and pre-soldered tracks for easier soldering, detachable LCD display with blue LED backlight, programmed PIC16F628A microcontroller chip, high precision capacitors and inductor, 1% Metal Film resistors, gold plated header pins, LCD header connectors and all the other components that are needed to build a premium quality kit. Thanks to the use of LCD connectors LCD display can be detached from the main PCB board at any time even after the kit has been assembled. All components are through-hole and are easy to solder. Special Edition Accurate LC Meter is designed for professionals that require unprecedented measurement accuracy and offers great value at low cost.
Specifications
Measures following inductance: 10nH - 1000nH, 0.1uH - 1000uH, 0.1mH - 100mH
Measures following capacitance: 0.1pF - 1000pF, 0.1nF - 900nF
Voltage Supply: 6 - 16V
Current Consumption: 10mA
Dimensions: 80 mm x 36 mm x 23 mm (W x L x H)
Component List
1x 16 x 2 LCD Display with Blue Backlight
1x Premium Quality Dual Layer LC Meter PCB
1x PIC16F628A Programmed Microcontroller IC
1x LM311 IC
1x 18 DIP IC Socket
1x 8 DIP IC Socket
1x 78L05 5V Voltage Regulator
1x 10K Potentiometer
1x High Grade 82uH Inductor
1x 4.000 MHz Crystal
1x 5V Ceramic Reed Relay
1x L/C Push-button Switch with Black Cap
1x Tactile Reset Switch
1x 100uF Panasonic Capacitor
2x 10uF Panasonic Capacitors
1x 100nF / 50V TDK Capacitor
2x 1000pF 2.5% WIMA Capacitors
2x 10pF Capacitors
1x 16-PIN Gold Plated LCD Female Header
1x 16-PIN Gold Plated LCD Male Header
2x 2-PIN Gold Plated Header
3x 100K 1% Metal Film Resistors
1x 47K 1% Metal Film Resistor
2x 6.8K 1% Metal Film Resistors
1x 1K 1% Metal Film Resistor
1x 100 1% Metal Film Resistor
1x 33 1% Metal Film Resistor
|
|
|
|

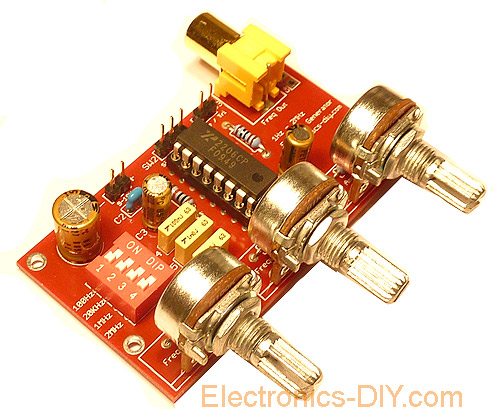

1Hz - 2MHz XR2206 Function Generator Kit
Premium quality XR2206 Function Generator kit capable of producing high quality sine, square and triangle waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated. Coarse frequency adjustment is accomplished using 4-DIP switch for the following four frequency ranges; (1) 1Hz-100Hz, (2) 100Hz-20KHz, (3) 20KHz-1MHz, (4) 150KHz-2MHz. Frequency output can be fine tuned using P1 and P2 potentiometers. The kit includes output that can be connected to 60MHz Counter kit for displaying output frequency on LCD display. 1Hz - 2MHz XR2206 Function Generator kit includes premium quality components, including Audio Grade Gold Capacitors, Gold Plated RCA Connector, WIMA Capacitors, 1% Metal Film Resistors and premium quality double-sided PCB with red solder mask and plated through holes.
Sine Wave
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
Square Wave
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
Triangle Wave
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz)
Specifications
Voltage Supply: 9-18V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600Ω + 10%
Frequency: 1Hz - 2MHz in 4 steps ranges with fine adjustment
PCB Dimensions: 37 x 63 mm / 1.5" x 2.5"
Component List
1x XR2206
1x Premium Quality PCB with Red Solder Mask
1x Yellow RCA Connector
1x Gold Plated 4-DIP Switch
1x Sine / Square Switch
1x Sine / Triangle Switch
2x 100K Potentiometer
1x 10K Potentiometer
1x 100uF / 50V Nichicon Gold Audio Grade Capacitor
2x 10uF / 35V Nichicon Gold Audio Grade Capacitor
1x 100nF WIMA Capacitor
1x 1nF WIMA Capacitor
1x 150pF Capacitor
3x 6.8K 1% Metal Film Resistor
1x 1K 1% Metal Film Resistor
1x 200 1% Metal Film Resistor
1x 2-PIN Gold Plated Male Header
1x Manual with Schematic
Related Products
60MHz Frequency Meter / Counter Kit |
|
|
|

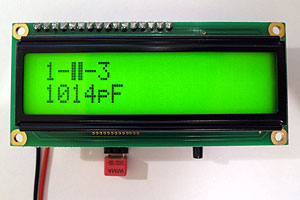

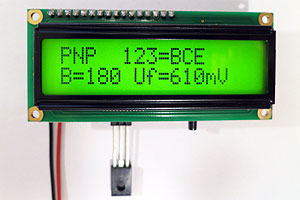

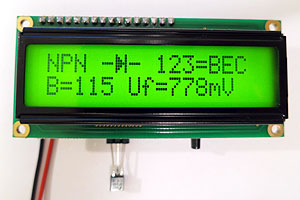

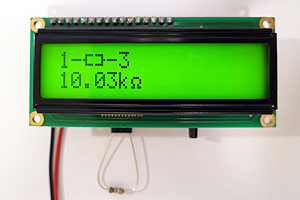

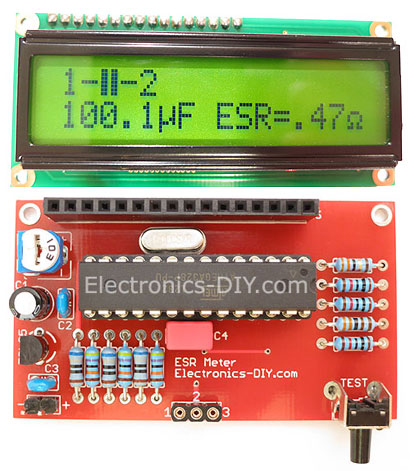

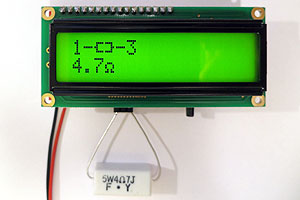

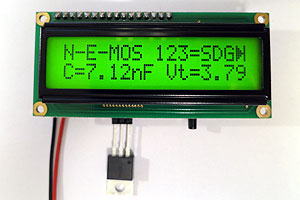

ESR Meter / Transistor Tester / LC Meter Kit - Blue Backlight LCD
ESR Meter / Transistor Tester / LC Meter kit is an amazing auto-ranging multimeter that automatically identifies and analyzes components being tested. It measures ESR values, capacitance (100pF - 20,000uF), inductance (10uH - 20H), resistance (0.1 Ohm - 20 MOhm), tests many different types of transistors such as NPN, PNP, FETs, MOSFETs, Thyristors, SCRs, Triacs and many types of diodes. It also analyzes transistor's characteristics such as voltage and gain. It is an irreplaceable tool for troubleshooting and repairing electronic equipment by determining performance and health of electrolytic capacitors. Unlike other ESR Meters that only measure ESR value this one measures capacitor's ESR value as well as its capacitance all at the same time.
Electrolytic capacitors are by far the electronic parts that suffer aging soonest. If you have any electronic equipment that over the years has degraded its performance, developed quirks, sometimes ending in complete failure, the chances are good that one or more electrolytic capacitors inside it have degraded, causing the problem. Electrolytic capacitors age in several ways: They can become electrically leaky, causing a DC current through them that can make them blow up. They can shift in capacitance value. But the most common way they degrade, by far, is by unduly increasing their equivalent series resistance, which is the undesired internal resistance that appears in series with the wanted capacitance at a given frequency.


Specifications
ESR Measurements: 2.2uF - 20,000uF
ESR Resolution: 0.01 Ohm
Capacitance Measurements: 100pF - 20,000uF
Inductance Measurements: 10uH - 20H
Resistance Measurements: 0.1 Ohm - 20M Ohm
Tests and identifies PINs of all transistors: Bipolar (NPN, PNP), FETs, MOSFETs (N-Channel, P-Channel, enhancement-mode and depletion-mode MOSFETs), Thyristors, SCRs and Triacs.
Tests and identifies PINs and voltage of diodes, dual diodes, varicap diodes (and their capacity), zener diodes (test voltage up to 5V) and LEDs.
Power Requirements: 7-16V / 9V Battery
Current Consumption: 40mA
Component List
1x ESR Meter / Transistor Tester Kit PCB
1x 16 x 2 LCD Display with Blue Backlight
1x ATMEGA328 Programmed microcontroller
1x 28-DIP IC Socket
1x 16-PIN Gold Plated Male Header (LCD)
1x 16-PIN Gold Plated Female Connector (PCB)
1x 3-PIN Gold Plated Machined Female Socket
1x 2-PIN Gold Plated Male Header
1x 78L05 5V Voltage Regulator
1x Tactile Switch
1x 10K LCD Contrast Potentiometer
1x 100uF Panasonic Capacitor
1x 1000pF Capacitor
2x 100nF Capacitors
11 x 1% Metal Film Resistors
1x ESR Meter manual with schematic and assembly instructions |
|
|
|
Audiophile Headphone Amplifier Kit
Audiophile headphone amplifier greatly improves the sound quality, adding three dimensional layered soundstage to any audio source whether it is your desktop computer, laptop, phone, MP3 player, Raspberry Pi, XBOX, SONY Playstation, etc. The kit is built using premium audio grade components such as High Precision Ti OPA2134 opamp for excellent audio soundstage, Ti TLE2426 rail splitter, Ultra-Low ESR 470uF Panasonic FM filtering capacitors, High quality German WIMA input and decoupling capacitors and Vishay Dale resistors. 8-DIP machined IC socket allows to roll & swap OPA2134 with many other dual opamp chips and experience different sound signatures (such as OPA2132, OPA2107, OPA2277, OPA2228, OPA2604, dual OPA132, OPA1612, OPA627, LM4562, TL072, NE5532, and many more). Headphone amplifier is small enough to fit in Altoids tin box, and thanks to low power consumption may be supplied from a single 9V battery.
High Precision Ti OPA2134 opamp for excellent audio soundstage
Premium quality stereo volume control potentiometer
Ti TLE2426 rail splitter provides dual rail supply from single battery operation
Ultra-Low ESR 470uF Panasonic FM filtering capacitors (Made in Japan)
High quality WIMA input and decoupling capacitors (Made in Germany)
Audio grade Vishay Dale resistors
8-DIP machined IC socket allows to swap NE5532 with many other opamp chips
Can be used to drive audiophile headphones such as HD600, HD650, HD660S, HD700, HD800, DT880, DT770, DT990, DT1770, DT1990, T1, etc.
Input voltage supply 4-32V. Can be supplied from a single 9V or 4.2V LIPO battery
Low power consumption (14mA)
High quality 3.5mm audio sockets for headphones and input
Comes with 9V battery clip
Compact form factor (4cm x 3.3cm) |
|
|
|
FM Transmitter Kit
Tiny FM Transmitter kit transmits audio through on-board microphone for up to 300 meters. Transmitter has high sensitivity microphone and good frequency stability. May be used as a bug, for room monitoring, baby listening, nature research, etc. Frequency is adjusted through variable coil. Comes with 9V battery clip.
Specifications
Adjustable Frequency: 88-108MHz
Transmission Range: 300 meters
Voltage Supply: 3-9V
Dimensions: 0.6" x 1.6" (15mm x 40mm)
Component List
1x PCB with Red Solder Mask, Plated-Through Holes and Ground Plane
1x 2SC9018 Low Noise RF Transistor
1x Miniature Microphone
1x 9V Battery Clip
1x Adjustable Precision Variable Coil
2x 100nF Multi Layer Ceramic Capacitors
1x 10nF Multi Layer Ceramic Capacitor
1x 47pF Ceramic Capacitor
1x 30pF Ceramic Capacitor
1x 22pF Ceramic Capacitor
1x 15pF Ceramic Capacitor
1x 10pF Ceramic Capacitors
1x 47K 1% Metal Film Resistor
1x 10K 1% Metal Film Resistor
1x 100R 1% Metal Film Resistor |
|
|
|

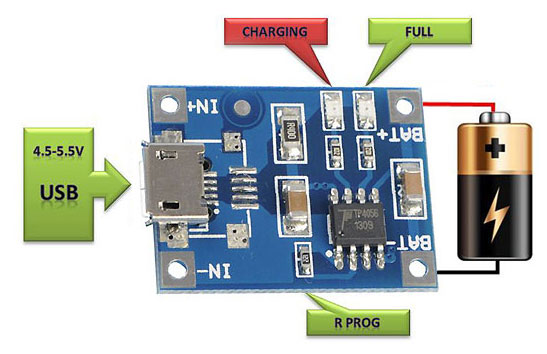

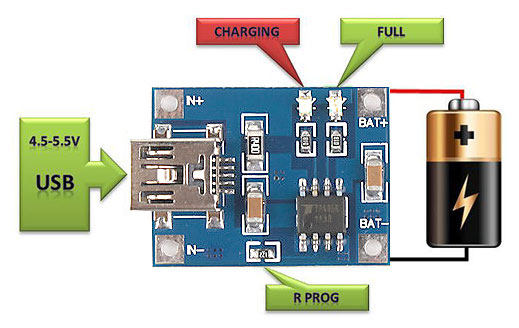

1A Micro USB LIPO Battery Charger
1A Micro USB LIPO battery charger designed to charge 3.7V LIPO / Li-Ion / Lithium Polymer batteries.
Input Voltage: Micro USB / 4.5-5.5V
Charging Voltage: 4.2V
Charging Current: 1A
Charging current adjustable via R PROG resistor: 1A - 1.2K (default), 900mA - 1.3K, 780mA - 1.5K, 580mA - 2K, 400mA - 3K, 300mA - 4K, 250mA - 5K, 130mA - 10K
Two LEDs indicate charging status
Dimensions: 16 x 22 mm |
|
|
|

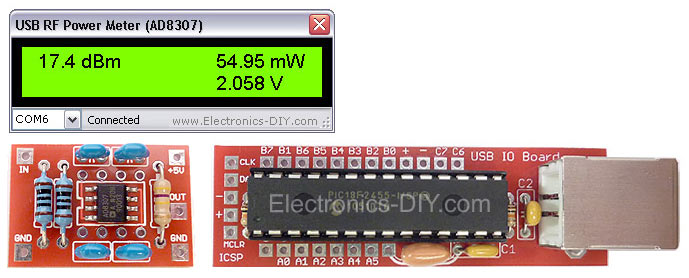

Accurate USB 0-500MHz RF Power Meter Kit
With Accurate USB 0-500MHz RF Power Meter measurement of transmitter's output RF power has never been easier and more precise. Meter allows to measure RF power of transmitters in dBm, Watts (nW, uW, mW and W range) as well as input voltage. USB RF Power Meter is based on popular AD8307 watt power meter IC and PIC18F2550 microcontroller. Simply connect it to a PC via USB port and measurement readings will be displayed on a computer using included USB RF Power Meter software. Software settings can be configured to use 10-50dBm attenuator and thus allowing to measure higher RF power.
Specifications
Measures RF Power from 1nW to 2W (50W with 40dB attenuator) / -66.6dBm to 33dBm
Auto-range RF Wattage Measurement: nW, uW, mW and W
Frequency Input: 0-500MHz
Self-powered by USB port
Component List
1x RF Power Meter Probe PCB

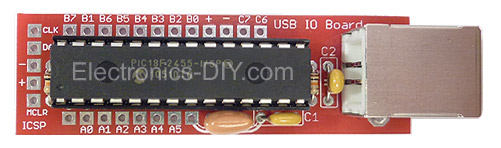

1x USB IO Board PCB
1x AD8307 RF Power Meter IC
1x Programmed PIC18F2550 / PIC18F2455 Microcontroller
1x 28-DIP IC Socket
1x USB Type B Connector
1x 20MHz Crystal Resonator
6x 100n Capacitor
1x 470K 1% Metal Film Resistor
2x 100 Ohm 1% Metal Film Resistor
2x 10K Micro Resistor
1x Cable wires
1x Instructions with schematics
Included Software
USB RF Power Meter software (Windows 2000, XP, VISTA, Win7, Win8, Win10)
USB RF Power Meter Drivers (Windows 2000, XP, VISTA, Win7, Win8, Win10) |
|
|
|

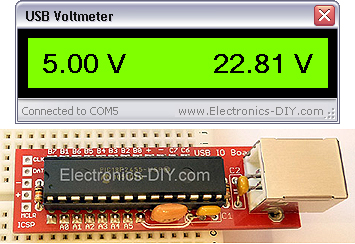

USB Voltmeter Kit
USB Voltmeter is a PC based dual channel voltmeter built around PIC18F2550 microcontroller that measures voltage from 0.00V up to 500.00V with 10mV resolution. USB Voltmeter sends measured data to PC via standard USB connection displaying data on a computer monitor. USB Voltmeter is self-powered drawing very little current from USB port. Voltage readings are displayed via included USB Voltmeter software.
Specifications
Voltage Input Range: 0 - 500V
Voltage Input Channels: 2
Voltage Resolution: 10mV
Power Supply: 5V (USB Powered)
PCB Dimensions: 18mm x 59mm / 0.7' x 2.3'
Component List
1x PIC18F2550 Programmed Microcontroller (MCU)
1x USB Voltmeter PCB
1x 28-DIP IC Socket
1x USB Type B Connector
1x Gold Plated 12-PIN Male Header
1x Gold Plated 8-PIN Male Header
1x 20MHz Crystal Resonator
2x 100K 1% Metal Film Resistor
2x 10K Micro Resistor
2x 6.8K 1% Metal Film Resistor
2x 1K 1% Metal Film Resistor
1x 100uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
1x Instructions with Schematic
1x USB Voltmeter software (Win 10, 8, 7, XP, VISTA) |
|
|
|
USB IO Board Kit
USB IO Board is a tiny spectacular input / output development board (parallel port replacement) that can be used for controlling many different devices as well as data acquisition such as collecting data from sensors, buttons, voltage/current measurements, etc. It is based around single PIC18F2550 microcontroller chip that includes 10x 10-bit Analog to Digital Converters (ADC) for precision voltage/current measurements. Controlling USB IO Board is easy. When attached to Windows PC USB IO Board will show up as RS232 COM serial port. You can control 16 individual microcontroller I/O pins by sending simple serial commands or write your own custom C#/VB.NET application. USB IO Board is self-powered by USB port and can provide up to 500mA for your project needs. USB IO Board is breadboard compatible. Simply solder included 12-PIN & 8-PIN male headers on the bottom side of the PCB and the board can be plugged into a breadboard for quick prototyping. USB IO Board is compatible with Windows 10, 8, 7 (32/64-bit), XP, VISTA, Win2K, Mac OSX and Linux.
These are examples of what can be built using USB IO Board Pro:
USB Relay Controller (turn ON/OFF lights or appliances in the house)
Control LEDs, toys, electronic gadgets, wireless control, etc.
USB LCD Controller
USB Volt / Ampere / Wattage / Pressure Meter
USB CNC Controller
USB Data Logger
USB Temperature Meter / Logger
USB Thermostat
USB Humidity Meter / Logger
USB Digital RF Power Meter
USB Stepper Motor Controller
USB RC Servo Controller
and much more
Specifications
16 I/O PINs
10 x 10-bit ADCs for precision measurements
USB 2.0 and USB 1.1 plug-and-play compatibility
USB Powered
Runs under Windows 10, 8, 7 (32/64-bit), XP, VISTA, Win2K, Mac OSX and Linux
Low 5mA current consumption
PCB Dimensions: 18mm x 59mm / 0.7' x 2.3'
Click here for schematic, pictures and sample software
Component List
1x PIC18F2550 Programmed Microcontroller (MCU)
1x USB IO Board PCB
1x 28-DIP IC Socket
1x USB Type B Connector
1x Gold Plated 12-PIN LCD Male Header
1x Gold Plated 8-PIN LCD Male Header
1x 20MHz Crystal Resonator
2x 10K Resistor
1x 100uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
1x Instructions with Schematic |
|
|
|
60MHz Frequency Meter / Counter Kit
60MHz Frequency Meter / Counter kit measures frequency from 10Hz to 60MHz with 10Hz resolution. It is extremely useful bench test equipment for testing and measuring frequency of oscillators, transmitters, radio receivers, function generators, crystals, etc. Counter provides exceptionally stable readings and has excellent input sensitivity thanks to onboard amplifier and TTL converter. It can be even used for measuring weak signals from crystal oscillators. With the addition of simple prescaller it is possible to measure frequency up to 1GHz or more. Counter's measuring range has now been extended form 50MHz up to 60MHz.
Click here for more information and schematic
Specifications
Voltage Supply: 7V - 16V
Power Consumption: 80mA with LCD backlight
Frequency Measurement: 10Hz - 60MHz
Measurement Resolution: 10Hz
Component List
1x 16 x 2 LCD Display with Green Backlight
1x PIC16F628A Programmed Microcontroller
1x PCB
1x 18-DIP IC Socket
1x 4.000MHz Crystal
1x LM7805 5V Voltage Regulator
1x 1 x 16 Gold Plated Female Header (for PCB)
1x 1 x 16 Gold Plated Male Header (for LCD)
2x 1 x 2 Gold Plated Male Header (for LCD)
1x BF199
1x 10uH Inductor
1x 10K Trimmer
1x 10K 1% Metal Film Resistor
2x 470 1% Metal Film Resistor
1x 33 1% Metal Film Resistor
1x 100uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
2x 10pF Ceramic Capacitor
1x Manual with Schematic
Related Products
1Hz - 2MHz XR2206 Function Generator Kit
|
|
|
|
ESR Meter / Transistor Tester / LC Meter Kit
ESR Meter / Transistor Tester / LC Meter kit is an amazing auto-ranging multimeter that automatically identifies and analyzes components being tested. It measures ESR values, capacitance (100pF - 20,000uF), inductance (10uH - 20H), resistance (0.1 Ohm - 20 MOhm), tests many different types of transistors such as NPN, PNP, FETs, MOSFETs, Thyristors, SCRs, Triacs and many types of diodes. It also analyzes transistor's characteristics such as voltage and gain. It is an irreplaceable tool for troubleshooting and repairing electronic equipment by determining performance and health of electrolytic capacitors. Unlike other ESR Meters that only measure ESR value this one measures capacitor's ESR value as well as its capacitance all at the same time.
Electrolytic capacitors are by far the electronic parts that suffer aging soonest. If you have any electronic equipment that over the years has degraded its performance, developed quirks, sometimes ending in complete failure, the chances are good that one or more electrolytic capacitors inside it have degraded, causing the problem. Electrolytic capacitors age in several ways: They can become electrically leaky, causing a DC current through them that can make them blow up. They can shift in capacitance value. But the most common way they degrade, by far, is by unduly increasing their equivalent series resistance, which is the undesired internal resistance that appears in series with the wanted capacitance at a given frequency.
Specifications
ESR Measurements: 2.2uF - 20,000uF
ESR Resolution: 0.01 Ohm
Capacitance Measurements: 100pF - 20,000uF
Inductance Measurements: 10uH - 20H
Resistance Measurements: 0.1 Ohm - 20M Ohm
Tests and identifies PINs of all transistors: Bipolar (NPN, PNP), FETs, MOSFETs (N-Channel, P-Channel, enhancement-mode and depletion-mode MOSFETs), Thyristors, SCRs and Triacs.
Tests and identifies PINs and voltage of diodes, dual diodes, varicap diodes (and their capacity), zener diodes (test voltage up to 5V) and LEDs.
Power Requirements: 7-16V / 9V Battery
Current Consumption: 40mA
Component List
1x ESR Meter / Transistor Tester Kit PCB
1x 16 x 2 LCD Display with Green Backlight
1x ATMEGA328 Programmed microcontroller
1x 28-DIP IC Socket
1x 16-PIN Gold Plated Male Header (LCD)
1x 16-PIN Gold Plated Female Connector (PCB)
1x 3-PIN Gold Plated Machined Female Socket
1x 2-PIN Gold Plated Male Header
1x 78L05 5V Voltage Regulator
1x Tactile Switch
1x 10K LCD Contrast Potentiometer
1x 100uF Panasonic Capacitor
1x 1000pF Capacitor
2x 100nF Capacitors
11 x 1% Metal Film Resistors
1x ESR Meter manual with schematic and assembly instructions |
|
|
|
Special Edition Accurate LC Meter Kit
Build your own Special Edition Accurate LC Meter (Inductance Meter / Capacitance Meter) and start making custom made precision coils and inductors. Accurate LC Meter allows to measure incredibly small inductances making it perfect tool for making all types of RF coils and inductors. It can measure inductance starting from only 10nH - 1000nH, 1uH - 1000uH, 1mH up to 100mH and capacitance from 0.1pF up to 900nF. Special Edition LC Meter includes top notch high precision components that are only found in premium quality kits. It includes high quality double-sided printed circuit board (PCB) with red solder mask and pre-soldered tracks for easier soldering, detachable LCD display with green LED backlight, programmed PIC16F628A microcontroller chip, high precision capacitors and inductor, 1% Metal Film resistors, gold plated header pins, LCD header connectors and all the other components that are needed to build a premium quality kit. Thanks to the use of LCD connectors LCD display can be detached from the main PCB board at any time even after the kit has been assembled. All components are through-hole and are easy to solder. Special Edition Accurate LC Meter is designed for professionals that require unprecedented measurement accuracy and offers great value at low cost.
Specifications
Measures following inductance: 10nH - 1000nH, 0.1uH - 1000uH, 0.1mH - 100mH
Measures following capacitance: 0.1pF - 1000pF, 0.1nF - 900nF
Voltage Supply: 6 - 16V
Current Consumption: 10mA
Dimensions: 80 mm x 36 mm x 23 mm (W x L x H)
Component List
1x 16 x 2 LCD Display with Green Backlight
1x Premium Quality Dual Layer LC Meter PCB
1x PIC16F628A Programmed Microcontroller IC
1x LM311 IC
1x 18 DIP IC Socket
1x 8 DIP IC Socket
1x 78L05 5V Voltage Regulator
1x 10K Potentiometer
1x High Grade 82uH Inductor
1x 4.000 MHz Crystal
1x 5V Ceramic Reed Relay
1x L/C Push-button Switch with Black Cap
1x Tactile Reset Switch
1x 100uF Panasonic Capacitor
2x 10uF Panasonic Capacitors
1x 100nF / 50V TDK Capacitor
2x 1000pF 2.5% WIMA Capacitors
2x 10pF Capacitors
1x 16-PIN Gold Plated LCD Female Header
1x 16-PIN Gold Plated LCD Male Header
2x 2-PIN Gold Plated Header
3x 100K 1% Metal Film Resistors
1x 47K 1% Metal Film Resistor
2x 6.8K 1% Metal Film Resistors
1x 1K 1% Metal Film Resistor
1x 100 1% Metal Film Resistor
1x 33 1% Metal Film Resistor |
|
|
|
USB-C PD Power Supply Module
Power electronic projects using voltage from USB-C PD charger / power adapter. Performs PD power negotiation that outputs 5V, 9V, 12V, 15V and 20V fixed voltage. Voltage is adjusted using the onboard dip switch according to the table located on the back of the PCB. Module supports PD2.0, PD3.0, QC2.0, QC3.0, and AFC chargers. USB-C PD charger / power adapter must support desired output voltage. |
|
|
|
Micro SD MP3 Player
Complete MP3 player that plays MP3 audio files stored on microSD memory card. New audio DAC chip supports microSD cards up to 128GB, and provides excellent sound quality and base.
Features
Single chip microSD MP3 Player
Plays MP3 audio files stored on microSD memory card
Button Functions: Play/Pause, Next / Skip 10 songs, Previous / Skip 10 songs, Volume Up and Volume Down
Support for up to 128GB microSD memory cards (not included)
Onboard connectors: microSD slot, 3.5mm headphone connector and micro USB connector
Support for USB 2.0 data transfer
May be used as card reader
Includes built-in LIPO battery (rechargeable through USB connection)
Dimensions: 28mm x 40mm x 5mm |
|
|
|

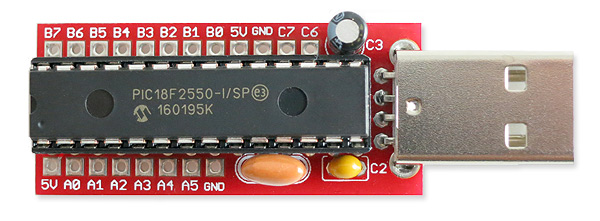

USB IO Board Stick Kit
USB IO Board Stick is a tiny spectacular input / output development board / parallel port replacement that can be used to control many different devices via USB port. It may also be used for data acquisition such as collecting data from sensors, buttons, voltage/current measurements, etc. It plugs right into computer's USB port so no USB cable is required. USB IO Board Stick is based around single PIC18F2550 microcontroller chip that includes 10x 10-bit Analog to Digital Converters (ADC) for precision voltage/current measurements. Controlling USB IO Board Stick is easy. When attached to Windows PC the board will show as RS232 COM serial port. You can control 16 individual microcontroller I/O pins by sending simple serial commands via included software or use included source code to write your own custom C#/VB.NET application. USB IO Board Stick is self-powered by USB port and can provide up to 500mA for your project needs and it is breadboard compatible. Simply solder included 12-PIN & 8-PIN male headers on the bottom side of the PCB and the board can be plugged into a breadboard for quick prototyping. USB IO Board Stick is compatible with Windows 10, 8, 7 (32/64-bit), XP, VISTA, Win2K, Mac OSX and Linux.
These are examples of what can be built using USB IO Board Stick:
USB Relay Controller (turn ON/OFF lights or appliances in the house)
Control LEDs, toys, electronic gadgets, wireless control, etc.
USB LCD Controller
USB Volt / Ampere / Wattage / Pressure Meter
USB CNC Controller
USB Data Logger
USB Temperature Meter / Logger
USB Thermostat
USB Humidity Meter / Logger
USB Digital RF Power Meter
USB Stepper Motor Controller
USB RC Servo Controller
and much more
Specifications
16 I/O PINs
10 x 10-bit ADC ports for precision voltage measurements
USB 3.0, 2.0 and USB 1.1 plug-and-play compatibility
USB Powered
Compatible with Windows 10, 8, 7 (32/64-bit), XP, VISTA, Win2K, Mac OSX and Linux
Low 5mA current consumption
PCB Dimensions: 18mm x 60mm / 0.7' x 2.25'
Click here for schematic, pictures and sample software
Component List
1x PIC18F2550 Programmed Microcontroller
1x USB IO Board Stick PCB
1x 28-DIP IC Socket
1x USB Male Type A Connector
1x Gold Plated 12-PIN LCD Male Header
1x Gold Plated 8-PIN LCD Male Header
1x 20MHz Crystal Resonator
2x 10K Resistor
1x 47uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
1x Instructions with Schematic |
|
|
|
USB Relay Controller
Control up to eight devices with your computer using this USB relay controller board. Comes with Relay Controller software to control your devices from a PC. 12V relays are not included.
Specifications
Voltage Supply: 12V
PCB Dimensions: 18mm x 59mm / 0.7' x 2.3'
Component List
1x PIC18F2550 Programmed Microcontroller (MCU)
1x USB Relay Controller PCB
1x 28-DIP IC Socket
1x USB Type B Connector
1x Gold Plated 12-PIN LCD Male Header
1x Gold Plated 8-PIN LCD Male Header
1x 20MHz Crystal Resonator
8x BC549 Transistor
8x 1K Resistor
2x 10K Resistor
1x 100uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
1x Instructions with Schematic
1x USB Relay Controller software (Win 10, 8, 7, XP, VISTA)
Relays are not included. |
|
|
|
Voltmeter Ammeter Kit
Voltmeter Ammeter is a great kit to measure voltage and current at the same time. It measures 0-70V or 0-500V voltage with 100mV resolution and current from 0 to 10A. It's a perfect addition to any power supply, battery chargers and other electronic projects where voltage and current must be monitored. Kit uses PIC16F876A microcontroller with built-in ADC (Analog to Digital Converter) to sample voltage with current and display it on 16 x 2 backlighted LCD display. It comes with all the parts required to build high quality kit, including double-sided PCB with beautiful red solder mask and plated through holes. With slight modification it is possible to measure higher voltage and current. To measure voltage that is higher than 70 Volts simply replace R3 6.8K resistor with included 1K resistor. This will allow to measure up to 500 Volts. To measure current that is higher than 10A simply replace 0.1 Ohm 5W power resistor with higher wattage resistor. For example 20W 0.1 Ohm resistor will allow to measure up to 20 Amperes. Kit can also measure AC voltage if rectifier bridge is added to voltage input as well as measure and be supplied by the same power source.
Specifications
Voltage Input: 0 - 70V / 0 - 500V
Current Input: 0 - 10A
Voltage Supply: 6 - 30V
Current Consumption: 30mA
Component List
1x 16 x 2 LCD Display with Green Backlight
1x PIC16F876A - Programmed microcontroller
1x High Quality PCB with red solder mask and plated through holes
1x 28-DIP IC Socket
1x 4MHz Resonator
1x 16 x 1 Gold Plated Male Header
1x 16 x 1 Gold Plated Female Header
1x 4 x 1 Gold Plated Header
1x LM7805 5V Voltage Regulator
1x 10K Trimmer Potentiometer
1x 4 x 10K Network Resistor
2x 100K 1% Metal Film Resistor
2x 6.8K 1% Metal Film Resistor
1x 1K 1% Metal Film Resistor
1x 33 1% Metal Film Resistor
1x 0.1 Ohm 5W Power Resistor
1x 100uF Panasonic Capacitor
1x 100nF Multilayer Ceramic Capacitor
1x Manual with Schematic |
|
|
|

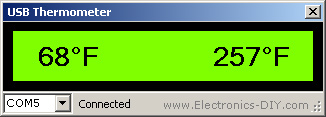

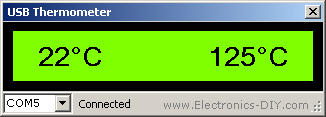

USB Thermometer Kit with Data Logger
USB Thermometer allows to measure temperature in two different locations. Two Microchip MCP9700 temperature sensors in standard TO-92 package are used to sample temperature and allow to measure temperature from -40 to +125 Celsius degrees. Simply connect to a PC computer via standard USB cable and temperature readings will be displayed using included USB Thermometer software. USB Thermometer takes power directly from USB port and does not need external power supply. Temperature readings can be displayed in both Fahrenheit and Celsius degrees.
USB Thermometer software comes with Data Logger feature. Date, time and temperature readings are saved to a text file and can be used to create various graphs via Microsoft Excel or any other statistical software. The software will log temperature every x amount of time which can be set from a second up to a day.
Specifications
Temperature Range: -40 to +125 degrees Celsius
Voltage Supply: 5V (USB Powered)
PCB Dimensions: 18mm x 59mm / 0.7' x 2.3'
Component List
1x PIC18F2550 Programmed Microcontroller (MCU)
2x MCP9700 temperature sensors (TO-92 package)
1x USB Thermometer PCB
1x 28-DIP IC Socket
1x USB Type A Connector
1x Gold Plated 12-PIN LCD Male Header
1x Gold Plated 8-PIN LCD Male Header
1x 20MHz Crystal Resonator
2x 10K Resistor
1x 47uF Panasonic Capacitor
2x 100nF Multilayer Ceramic Capacitor
1x Instructions with Schematic
1x USB Thermometer software with Data Logger (Win 10, 8, 7, XP, VISTA) |
|
|
|
Stereo Encoder / Multiplexer Kit
Stereo Encoder / Multiplexer kit enables stereo audio broadcast through any mono FM transmitter. It connects to mono FM transmitter's audio input and converts it into HI-FI Stereo FM Transmitter. NJM2035 IC features rock solid stereo MPX and PILOT clock based around 38KHz crystal. Stereo encoder is supplied by 1.5 - 3 Volts and draws only 2mA of current. Built-in stereo pre-emphasis enhances and produces crystal clear audio output. NJM2035 chip is manufactured by NJR CORPORATION (JRC), a subsidiary of New Japan Radio, a company that is known as the world's best manufacturer of high end professional audio semiconductors.
Specifications
Audio Input: Stereo (Left + Right audio channels)
Output: MPX (connects to mono FM transmitter's audio input)
SNR: 67dB
Channel Separation: 40 dB
Power Supply: 1.5 - 3V
Operating Current: 2mA
Dimensions: 1' x 1.75' (28mm x 46mm)
Component List
1x NJM2035 IC
1x PCB with Red Solder Mask
1x 14-DIP IC Socket
1x 38KHz Crystal
1x 50K Potentiometer
1x 33uF Panasonic Capacitor
1x 10uF Panasonic Capacitor
4x 100nF Capacitors
2x 1nF Capacitors
1x 100pF Capacitor
1x 10pF Capacitor
1x 10K 1% Metal Film Resistor
2x 47K 1% Metal Film Resistors
1x 82K 1% Metal Film Resistor
1x Manual with schematic and instructions |
|
|
|
Dual Channel Voltmeter Kit
Dual channel voltmeter measures voltage from 0V up to 70V providing excellent reading accuracy and 100mV resolution. It has two input channels for measuring two voltage sources at the same time. Dual channel voltmeter kit uses PIC16F876A microcontroller with built-in ADC (Analog to Digital Converter) and 16 x 2 backlighted LCD display.
Kit comes with all components required to build high quality dual channel voltmeter kit including premium quality PCB. Voltmeter can also measure AC voltage if full bridge rectifier is added to voltage input. Dual channel voltmeter can both measure and be supplied by the same power source.
Dual Channel Voltmeter Schematic
Component List
1x 16 x 2 LCD Display with Green Backlight
1x PIC16F876A - Programmed microcontroller
1x High Quality PCB with red solder mask and plated through holes
1x 28-DIP IC Socket
1x 4MHz Resonator
1x 16 x 1 Gold Plated Male Header
1x 16 x 1 Gold Plated Female Header
1x 4 x 1 Gold Plated Header
1x LM7805 5V Voltage Regulator
1x 10K Trimmer Potentiometer
1x 4 x 10K Network Resistor
2x 100K 1% Metal Film Resistor
2x 6.8K 1% Metal Film Resistor
1x 10 1% Metal Film Resistor
1x 100uF Panasonic Capacitor
1x 100nF Multilayer Ceramic Capacitor
1x Manual with Schematic
|
|
|
|
TDA7000 FM Receiver (Parts)
This simple one chip FM receiver / TV tuner will allow you to receive frequencies from 70 up to 120MHz. With this small receiver it is possible to pick up TV stations, entire 88 - 108MHz FM band, aircraft conversation and many other private transmissions. It is a perfect companion to any FM Transmitter especially if FM band in your area is very crowded. TDA7000 receiver offers very good sensitivity therefore it will even allow you to pickup weaker signals that cannot be heard on conventional FM receivers. A neat feature of presented TDA7000 FM receiver is a voltage controlled oscillator similar to TV tuners that are used in television sets. Frequency is tuned by varying the input voltage to the oscillator. The advantage of this type of oscillator is that you can use regular 100K potentiometer to precisely tune to a given broadcast. Tuning can be performed much quicker and precisely than by using a trimmer (variable capacitor). Trimmers will also shift the frequency as you touch them where potentiometer will not. Trimmer also needs to be placed on receiver's PCB to minimize the stray capacitance where potentiometer can be conveniently placed anywhere you want because it will not be affected by any external capacitance.
Click here to view TDA7000 FM receiver schematic & description
Component List
1x TDA7000
1x 18-PIN IC Socket
1x 5.5T Variable Coil
1x MV2105 - Varicap Diode
1x 100K Potentiometer
1x 100K Resistor
1x 22K Resistor
1x 10K Resistor
3x 100nF Capacitor
1x 22nF Capacitor
1x 10nF Capacitor
2x 3.3nF Capacitor
1x 2.2nF Capacitor
1x 1nF Capacitor
2x 330pF Capacitor
2x 220pF Capacitor
2x 180pF Capacitor
1x 150pF Capacitor |
|
|
|
BH1417 Stereo PLL FM Transmitter Parts
List of components for building BH1417 Stereo PLL FM Transmitter project. Add our 500mW FM / VHF Transmitter Amplifier / Booster for even longer range.
Component List
1x BH1417 - Stereo PLL Transmitter IC

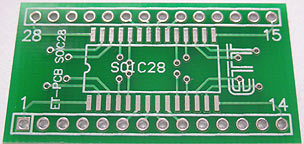

1x SOIC 28 to 28 DIP Adapter
1x 7.6 MHz Crystal
1x 5.5 Turns Variable Coil
1x MV2109 Varicap Diode
1x 4-DIP Switch
1x MPSA13 NPN Darlington Transistor
1x 100uF Nichicon Gold Capacitor
3x 10uF Nichicon Gold Capacitor
2x 1uF Nichicon Gold Capacitor
1x 47nF Capacitor
3x 2.2nF Capacitor
1x 1nF Capacitor
1x 330pF Capacitor
2x 150pF Capacitor
1x 33pF Capacitor
2x 27pF Capacitor
1x 22pF Capacitor
2x 10pF Capacitor
1x 22K Resistor
7x 10K Resistor
1x 5.1K Resistor
2x 3.3K Resistor
1x 100 Ohm Resistor |
|
|
|

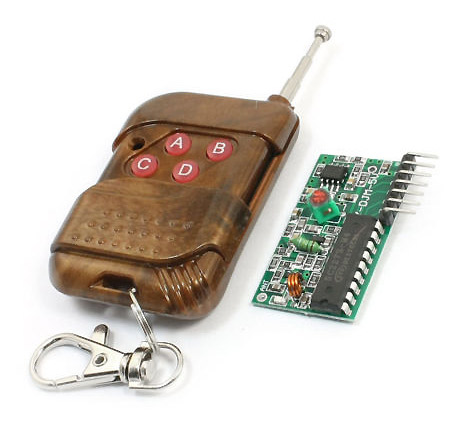

4-Channel 433MHz Wireless RF Remote Control (Transmitter + Receiver)
4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computer, etc. RF transmitter provides up to 150m range. Selection of custom address codes allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low cost digital 4013 IC. 12V (27A) alkaline battery is included.
Specifications
4 Momentary Outputs
150m Transmission Range
Rock-solid oscillator provides reliable operation
Valid transmission LED status through VT connection
High noise immunity
Standard header connection (breadboard compatible)
Selection of custom address codes allows to operate more than one unit in the same area or controlling the same receiver with multiple remotes
RF Transmitter Specifications
Voltage Supply: 12V (Included 27A Alkaline Battery)
Transmission Frequency: 433MHz
Transmission Range: 150m
Dimensions: 62 mm x 38 mm x 14 mm
RF Receiver Specifications
Voltage Supply: 5V
Transmission Frequency: 433MHz
Output Mode: Momentary
Power Consumption: 5 mA
Receiving Sensitivity: -101 dbm
Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
Dimensions: 41 mm x 22 mm x 6 mm |
|
|
|
433MHz RF Receiver Module
This tiny RF Receiver module is great for building your own wireless remote control or wireless link. Remote control that allows to control different devices can be easily implemented with wide range of encoder/decoder chips (such as HOLTEK HT12E + HT12D or MC145026 + MC145027 available in our store) or PIC / AVR microcontrollers. RF Module can also be used for sending data at up to 4.8KB/s.
Specifications
TTL Compatible Output
Voltage Supply: 5V
Power Consumption: 5mA
Receiving Sensitivity: -103 dB
Max Transfer Rate: 4.8KB/s
Operating Frequency: 433MHz
Dimensions: 30mm x 14mm x 7mm |
|
|
|

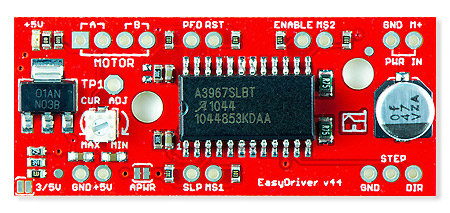

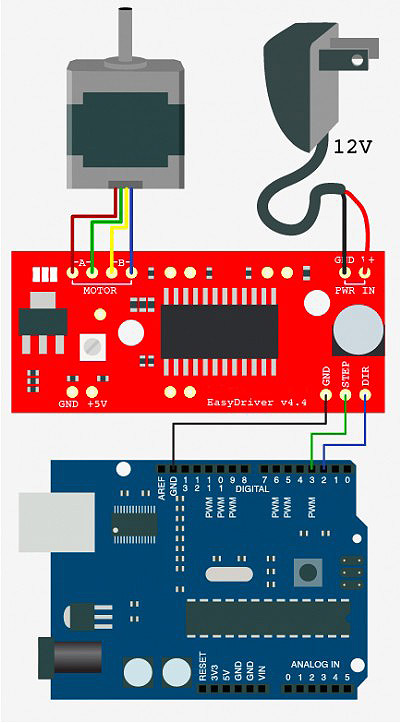

EasyDriver Stepper Motor Driver
The EasyDriver is a simple to use bipolar stepper motor driver that supports microstepping. It can be used to control 3-axis CNCs, robots, home appliances, etc. It's compatible with any source that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder 3/5V pads). Board is powered by 7V to 30V supply to power stepper motors with any voltage. It has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got a precision motor control. EasyDriver drives bipolar motors, and motors wired as bipolar. I.e. 4, 6, or 8 wire stepper motors.
This is the newest version of EasyDriver V4.4. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.
Note: Do not connect or disconnect a motor while the driver is energized. This may cause permanent damage to the A3967 IC.
Features
A3967 Precision Microstepping Driver
MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
Compatible with 4, 6, and 8 wire bipolar stepper motors such as popular NEMA 17
Adjustable current control from 150mA/phase to 750mA/phase
Compatible with Arduino GRBL G-code interpreter for driving 3-axis CNC machines
Breadboard compatible pins
Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
 |
|
|
|

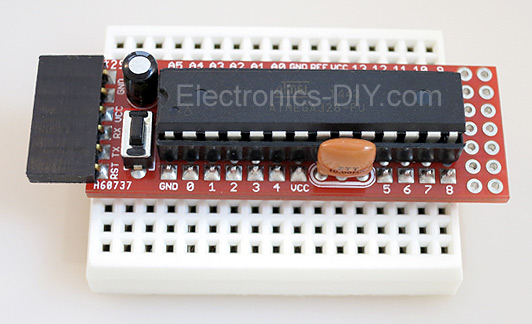

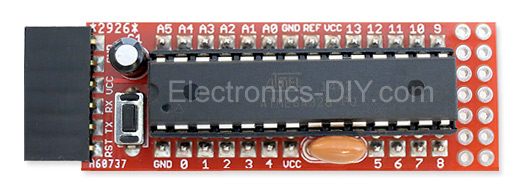

Arduino Prototype Kit
Arduino Prototype is a tiny arduino development board fully compatible with Arduino Pro. It's breadboard compatible so it can be plugged into a breadboard for quick prototyping. It has VCC & GND power pins available on both sides of PCB. It's small, power efficient, yet customizable through onboard 2 x 7 perfboard that can be used for connecting various sensors and connectors. Arduino Prototype uses all standard through-hole components for easy construction, two of which are hidden underneath IC socket. Board features 28-PIN DIP IC socket, user replaceable ATMEGA328 microcontroller flashed with Arduino bootloader, 16MHz crystal resonator and a reset switch. It has 14 digital input/output pins (0-13) of which 6 can be used as PWM outputs and 6 analog inputs (A0-A5). Arduino sketches are uploaded through any USB-Serial adapter connected to 6-PIN ICSP female header. Board is supplied by 2-5V voltage and may be powered by a battery such as Lithium Ion cell, two AA cells, external power supply or USB power adapter.
Specifications
100% compatible with Arduino IDE (Tools > Board > Arduino Pro (5V, 16MHz) w/ ATMEGA328)
Microcontroller: ATMEGA328
Low Power Consumption
Operating Voltage: 2 - 5V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
Flash Memory: 32KB of which 2 KB is used by Arduino bootloader
SRAM: 2 KB
EEPROM: 1 KB
PCB Dimensions: 18mm x 50mm
Component List
1x ATMEGA328 microcontroller programmed with Arduino Bootloader
1x Arduino Prototype PCB
1x 28-DIP IC Socket
1x 16MHz Crystal Resonator
1x Tactile Switch
1x Gold Plated 6-PIN Female Header
1x Gold Plated 14-PIN Male Header
1x Gold Plated 7-PIN Male Header
1x Gold Plated 6-PIN Male Header
1x Gold Plated 4-PIN Male Header
1x 10K Micro Resistor
1x 47uF Capacitor
2x 100nF Capacitors
1x Instructions with Schematic
Related Products
USB to Serial Arduino Programmer |
|
|
|
AD8307
DC to 500 MHz, 92 dB Logarithmic Amplifier
Complete multistage logarithmic amplifier with +/-1 dB linearity
92 dB dynamic range: -75 dBm to +17 dBm to -90 dBm using matching network
Output of 25 mV/dB, intercept of -84 dBm highly stable scaling over temperature
Fully differential dc-coupled signal path |
|
|
|

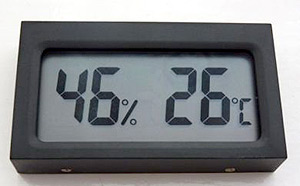

Humidity Temperature Meter
Provides simultaneous monitoring of humidity and temperature on large LCD display which can be read from across the room. For labs, chemical storage areas, clean rooms, stock rooms, warehouses, factories, greenhouses, and outdoors. Monitor humidity and temperature in desiccators, incubators, refrigerators, and fume hoods. Comes with LR44 battery.
Specifications
Temperature range: -40 C to 70 C (-40 F to 158 F)
Humidity range: 10% RH to 99% RH
Temperature resolution: 1 C
Humidity resolution: 1% RH
Size: 57mm (L) x 32mm (W) x 11.5mm (H)
Battery: LR44 (included) |
|
|
|

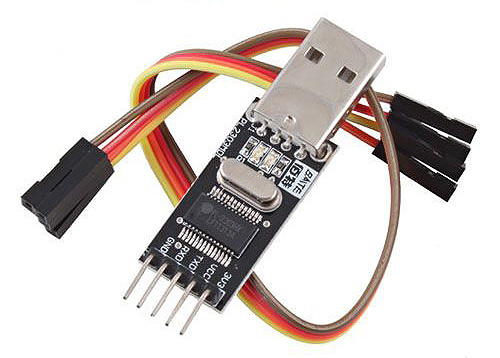

USB to RS232 TTL Adapter
USB to RS232 TTL Adapter for establishing serial communication between microcontrollers and USB equipped computer. Adapter provides TTL compatible TX/RX data outputs with 5V and 3.3V voltage outputs for powering microcontroller chips.
Compatibile with Arduino AVR PIC microcontrollers
TTL TX/RX data outputs
Onboard transfer and power LEDs
Adapter wires included
Provides 5V and 3.3V voltage outputs
USB specification 1.1 and 2.0 compliant
Windows 98/SE/ME/2000/XP/VISTA/Win7/Win10 drivers included
|
|
|
|

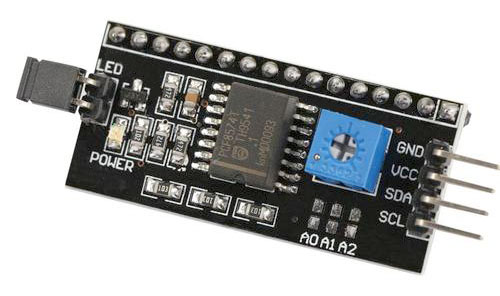

Serial I2C LCD Display Adapter
Serial I2C LCD display adapter converts parallel based 16 x 2 character LCD display into a serial i2C LCD that can be controlled through just 2 wires. Adapter uses PCF8574 chip that serves as I/O expander that communicates with Arduino or any other microcontroller by using I2C protocol. A total of 8 LCD displays can be connected to the same two wire I2C bus with each board having a different address. The default i2C address is 0X27 and may be changed to any of the following 0X20~0X27 via soldering A0 A1 A2 pins.
Schematic and sample Arduino code
Features
16 x 2 Character LCD display is controlled via just two wires
Up to 8 LCD displays with adapters can be connected and controlled by the same two wire I2C bus
Easy to control using Arduino board
Compatible with 16 x 2 character LCD displays
Adapter includes 16-PIN male header connector for soldering to LCD display
Contrast is adjusted via onboard potentiometer
Backlight may be turned on/off via jumper
Standard 5V voltage supply |
|
|
|

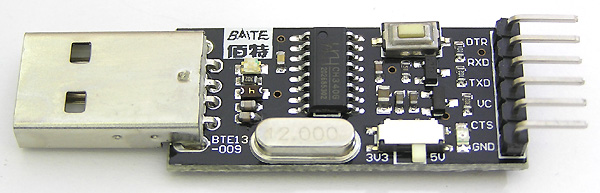

USB to Serial Arduino Programmer
USB to serial arduino programmer allows to upload arduino sketches into ATMEGA328, ATMEGA168, ATMEGA8 chips. Adapter provides TTL compatible TX/RX data outputs, DTR RESET pin, and 5V / 3.3V user selectable voltage output for powering microcontroller chip. Comes with five jumper wires.
Compatibile with Arduino AVR PIC microcontrollers
TTL TX/RX data outputs
Onboard transfer and power LEDs
Adapter wires included
User selectable 5V / 3.3V voltage output
USB specification 1.1 and 2.0 compliant
Windows 10, 7, Mac OSX and Linux drivers included |
|
|
|
470uF / 35V ELNA SILMIC II Audio Capacitor
The SILMIC II series are Elna's highest grade audio aluminum electrolytic capacitors that exhibit superior acoustic characteristics. An entirely new type of electrolytic separating paper is used, containing silk fibers. The extreme softness of silk can mitigate vibrational energy (generated by the electrodes, by external vibrations and by electromagnetic fields). Due to it's new electrolytic and foil design the signal propagation speed has increased (the ESR is reduced) and a more powerful, yet-mellow, sound is possible than before. When these capacitors were subjected to aural evaluations, the high range peak and midrange roughness were reduced substantially. Also, the low range richness and power were increased in the obtained high-quality sound.
Features
SIMIC II Highest Grade Audio capacitor
Uses Silk Fibers
Low ESR
Oxygen-free Copper Lead Wires (provide extremely low distortion)
Excellent for Power Amplifier / SACD / CD Player Upgrades
Fidelity is similar to Black Gate capacitors yet at much lower cost
Specifications
Dimensions: 16 mm x 32 mm (W x L)
Lead Spacing: 5 mm
Vinyl sleeve is of brown finish with SILMIC II mark |
|
|
|

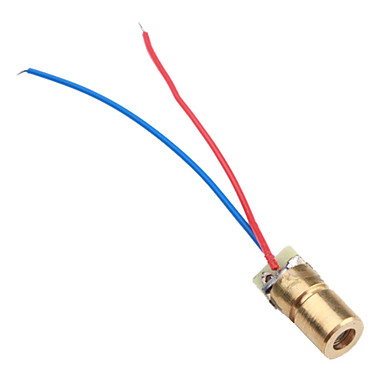

Laser Module - 5mW 650nm Red
Powerful 5mW RED laser module with over 2 miles range. Fun to play with or used as a pointer, level, etc. Encapsulated laser is Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 3V to 5V and they're great for electronics projects.
Output Power: 5mW
Wavelength: 650nm
Visible Range: > 2 miles / 3km
Working Voltage: 3-5V
Operating Current: 40 mA
Laser Shape: Dot
Dimensions: 6x 10 mm |
|
|
|
1A Mini USB LIPO Battery Charger
1A Mini USB LIPO battery charger designed to charge 3.7V LIPO / Li-Ion / Lithium Polymer batteries.
Input Voltage: Mini USB / 4.5-5.5V
Charging Voltage: 4.2V
Charging Current: 1A
Charging current adjustable via R PROG resistor: 1A - 1.2K (default), 900mA - 1.3K, 780mA - 1.5K, 580mA - 2K, 400mA - 3K, 300mA - 4K, 250mA - 5K, 130mA - 10K
Two LEDs indicate charging status
Dimensions: 19 x 25 mm
|
|
|
|

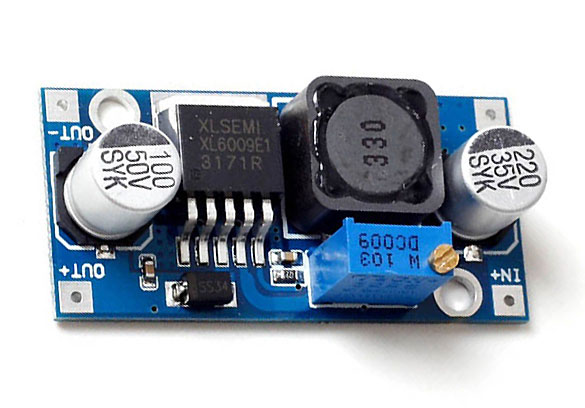

3-32V to 5-40V 4A Adjustable DC to DC Step Up Power Converter
High performance adjustable step up DC to DC power module allows to convert low voltage of 3-32V into higher 5-40V voltage. Uses latest switching XL6009 chip with a built-in 4A MOSFET transistor for high energy transfer and up to 94% efficiency. High switching frequency of 400KHz minimizes output ripples and noise. Output voltage is adjusted via on board multi-turn potentiometer. Can be used to build small battery powered bench power supply. Module dimensions are 43mm x 21mm x 14mm (WxDxH).
|
|
|
|

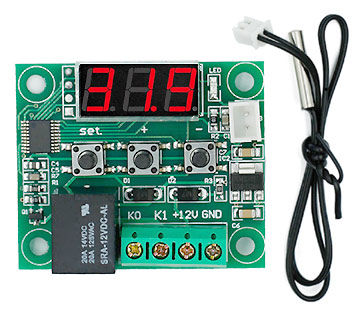

Digital Thermostat Controller
Temperature Range: -50-110 F
Resolution: 0.1 F
Sensor: 10K 0.5% NTC Waterproof Sensor
Output Relay: 20A / 125V
Supply Voltage: DC 12V / 35mA
Dimensions: 48 mm x 40 mm
|
|
|
|

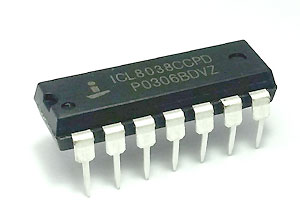

ICL8038 - Precision Waveform Generator
ICL8038 is a precision waveform generator with voltage control for generating accurate sine, square, triangular, sawtooth and pulse waveforms. The output frequency was set by resistors and capacitors and covers a range from 0.001 Hz to more than 300 kHz. |
|
|
|

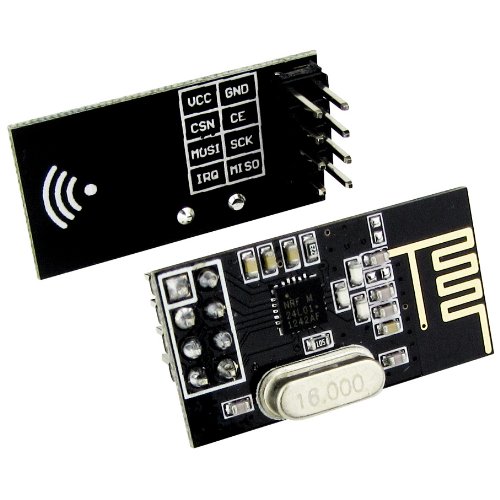

nRF24L01 2.4GHz Wireless Transceiver with Antenna
nRF2401A 2.4GHz transceiver modules with built-in antenna. Designed around nRF2401A chip with improved sensitivity and range. Two units are required for a complete link.
Frequency: 2.4GHz
Built-in 2.4Ghz antenna
Data Rate: up to 2Mbps
Standard 0.1' 2x 4 PIN header (breadboard compatible)
Voltage: 1.9 ~ 3.6V
Dimensions: 17 x 34 x 1 mm |
|
|
|

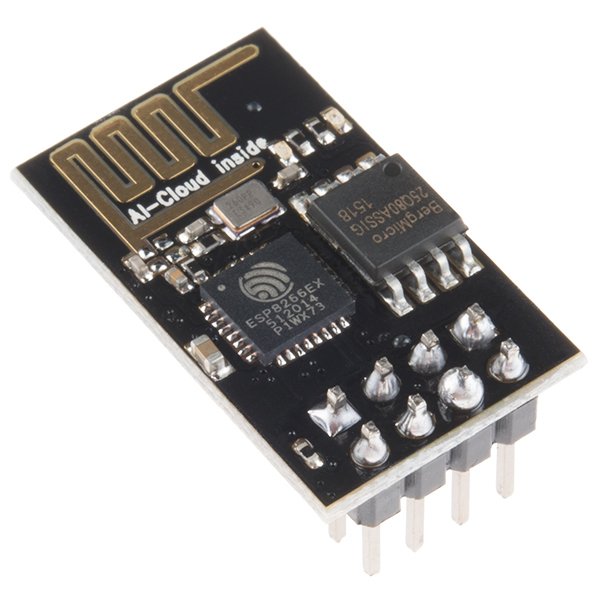

ESP8266 WiFi Module
The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, one can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers. This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existance interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.
Features
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1 / 2.0, SPI, UART
STBC, 1x 1 MIMO, 2x 1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3) |
|
|
|
USB AVR Programmer
Compact USB AVR Programmer for programming many ATmega, Tiny and classic ATMEL microcontrollers. Perfect for in-circuit AVR development. Allows to read and write microcontroller's firmware, EEPROM, fuse bits and lock bits. Supports Windows XP, 7, Linux and Mac OSX. The USB interface is achieved with ATmega8 microprocessor. USB AVR Programmer comes with 2-feet cable and standard 10-PIN ISP interface connector. Supports AVRDude and many other GUI AVR programming software.
Supported microcontrollers: ATmega8, ATmega16, ATmega32, ATmega48, ATmega64, ATmega88, ATmega103, ATmega128, ATmega161, ATmega162, ATmega163, ATmega164, ATmega168, ATmega169, ATmega324, ATmega328, ATmega329, ATmega640, ATmega644, ATmega649, ATmega1280, ATmega1281, ATmega2560, ATmega2561, ATmega3290, ATmega6490, ATmega8515, ATmega8535, ATtiny12, ATtiny13, ATtiny15, ATtiny25, ATtiny26, ATtiny45, ATtiny85, ATtiny2313, AT90S1200, AT90S2313, AT90S2333, AT90S2343, AT90S4414, AT90S4433, AT90S4434, AT90S8515, AT90S8535, AT90CAN128, AT90PWM2, AT90PWM3.
Features
Compact USB-powered USB AVR Programmer
Supports ATmega, Tiny and classic ATMEL microcontrollers
Onboard ATmega8 microcontroller
USB specification 1.1 and 2.0 compliant
Windows XP, 7 Linux and Mac OSX supported
Comes with Windows XP, 7 drivers, no diver required for Linux and Mac OSX
Comes with links to several GUI AVR programming software
Cable length: 2 feet
Standard 10-PIN ISP interface connector
Provides 3.3V and 5V output power for testing electronic projects
Comes with User Manual that includes target ATMEGA board schematic, link to XP/Win7 drivers, links to many GUI programming software and sample commands for programming with AVRDude. |
|
|
|

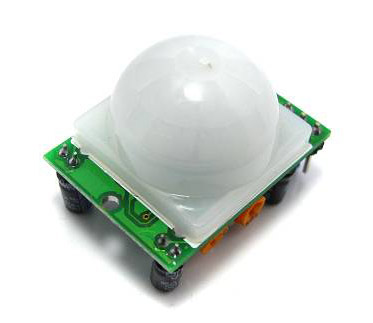

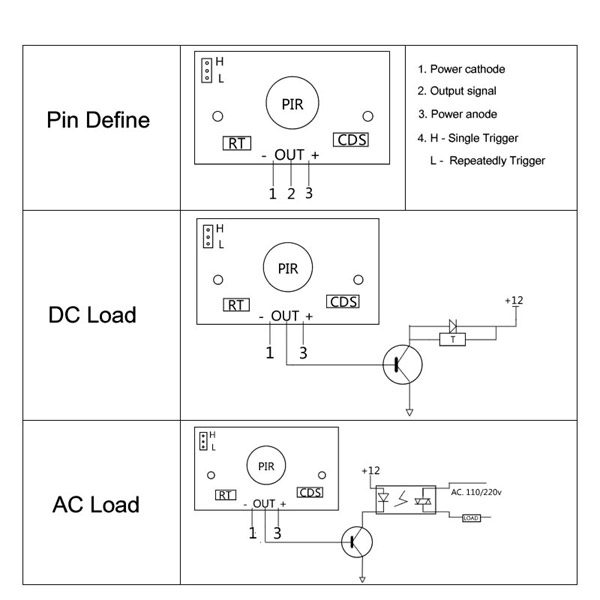

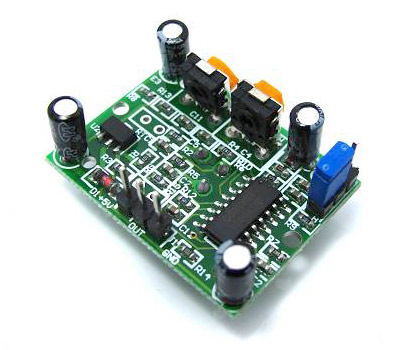

PIR Motion Sensor Detector
PIR motion sensor allows to detect human's presence/motion. Great for security lights, security systems, toys, etc. PIR sensor offers adjustable sensitivity (1-7 meters / 3-20 feet), built-in timer adjustable from 2 - 200 seconds, wide 4V - 20 V voltage supply, ultra-low power consumption and small size. When person enters in PIR sensor work range the output PIN goes high (3V). When person leaves the sensor's range the output remains high for 2-200 seconds (adjustable) and turns off (0V).
Specifications
Input Voltage: 4V - 20 V
Output PIN Voltage: 3V when ON, 0V when OFF
Micropower: quiescent current < 50 uA
ON Delay Timer: 2 - 200 seconds (adjustable)
Trigger mode: L - unrepeatable trigger / H - Repeatable Trigger (default)
Detector range: 1-7 meters / 3-20 feet (adjustable)
Detector angle: 140 Degrees
Dimensions: 24 x 32 x 28 mm (0.945 x 1.26 x 1.1 inch)
Working temperature: - 20?C ~ + 60?C
 |
|
|
|

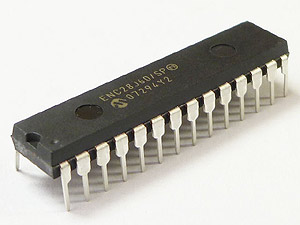

ENC28J60 Ethernet Controller
ENC28J60 is a complete easy to use 10Mbps ethernet controller from Microchip. It's easy to control with Arduino or microcontroller via SPI serial interface. ENC28J60 minimizes complexity, board space and cost. Add RJ45 socket and few other components to build your own network / internet connected projects.
Date rate: 10Mbps
SPI interface
28-pin DIP package
Supply current: 180mA
Supply Voltage Range: 3.1 to 3.6V (3.3V typical) |
|
|
|
BH1415 Stereo Encoder (parts, no PCB)
This is the latest MPX BH1415 Stereo Encoder that includes a lot of great features in one small package. The heart of Stereo Encoder is a new BH1415 chip from RHOM that includes components that were previously only available in expensive broadcast quality stereo encoders. Connect this stereo encoder to any mono FM transmitter to convert it into Hi-Fi stereo FM transmitter.
Circuit features built-in; crystal oscillator based stereo audio encoding, pre-emphasis for reducing transmission noise, limiter so that the music can be transmitted at the same audio level and 15KHz brickwall low pass filter that blocks any audio signals above 15KHz to prevent any RF interference.
For limited time we include SOIC 28 to DIL adapter free of charge.
Specifications
Crystal based stereo encoder
15KHz brickwall filter
Audio Limiter
Pre-emphasis
Excellent channel separation
Component List
1x BH1415 - Stereo PLL Transmitter IC
1x 7.6 MHz Crystal
1x 78L05 Voltage Regulator
1x 10K Resistor
3x 10uF Capacitor
2x 1uF Capacitor
2x 2.2nF Capacitor
1x 1nF Capacitor
2x 150pF Capacitor
2x 27pF Capacitor |
|
|
|

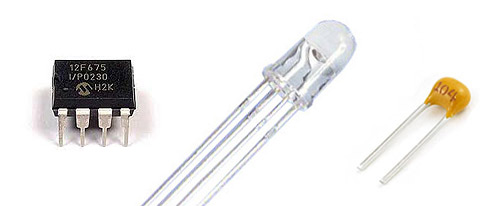

RGB LED Candle (parts)
Simple RGB LED candle circuit with the use of PIC12F675 microcontroller and super bright RGB LED. RGB LED candle can be customized for either White, Red, Green, Blue, Violet and Yellow colors. Includes programmed ready to use PIC12F675 microcontroller. LED Candle can be supplied by either two or three AAA / AA batteries or 3V CR type button battery.
Specifications
Operating voltage: 2V - 5.5V
LED Colors: White, Red, Green, Blue, Violet and Yellow
Component List
1x Programmed PIC12F675 with LED Candle program (DIP-8 case)
1x Super Bright Clear RGB LED (5mm)
1x 100n Capacitor
1x Instructions with schematic |
|
|
|
|
