22uF 50V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
 Diameter: 5 mm
Length: 11 mm
Lead Spacing: 2 mm
ESR: 0.22 Ohm
Life: 2000 hours
Temperature Rating: 105C
Ripple Current: 250 mA |
|
|
|
47uF 25V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 5 mm
Length: 11 mm
Lead Spacing: 2 mm
ESR: 0.22 Ohm
Life: 2000 hours
Temperature Rating: 105C
Ripple Current: 280 mA |
|
|
|
100uF 25V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 6 mm
Length: 11 mm
Lead Spacing: 5 mm
ESR: 0.1 Ohm
Life: 2000 hours
Temperature Rating: 105C
Ripple Current: 455 mA |
|
|
|

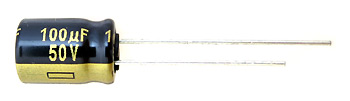

100uF 50V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 8 mm
Length: 11.5 mm
Lead Spacing: 3.5 mm
ESR: 0.06 Ohm
Life: 3000 hours
Temperature Rating: 105C
Ripple Current: 870 mA |
|
|
|
220uF 25V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 8 mm
Length: 11.5 mm
Lead Spacing: 3.5 mm
ESR: 0.05 Ohm
Life: 3000 hours
Temperature Rating: 105C
Ripple Current: 950 mA |
|
|
|

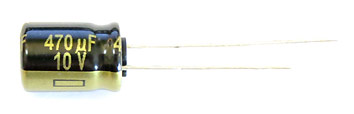

470uF 10V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 8 mm
Length: 11 mm
Lead Spacing: 3.5 mm
ESR: 0.04 Ohm
Life: 3000 hours
Temperature Rating: 105C
Ripple Current: 950 mA |
|
|
|

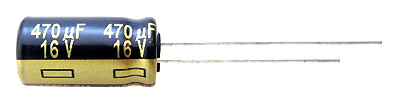

470uF 16V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 8 mm
Length: 15 mm
Lead Spacing: 5 mm
ESR: 0.04 Ohm
Life: 3000 hours
Temperature Rating: 105C
Ripple Current: 1.24A |
|
|
|

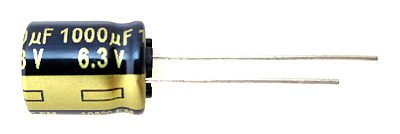

1000uF 6.3V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 10 mm
Length: 12.5 mm
Lead Spacing: 5 mm
ESR: 0.03 Ohm
Life: 4000 hours
Temperature Rating: 105C
Ripple Current: 1.29A |
|
|
|

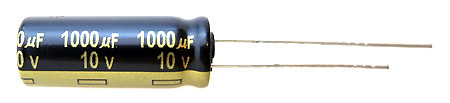

1000uF 10V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 8 mm
Length: 20 mm
Lead Spacing: 3.5 mm
ESR: 0.03 Ohm
Life: 4000 hours
Temperature Rating: 105C
Ripple Current: 1.56A |
|
|
|

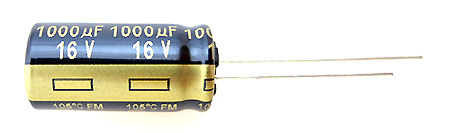

1000uF 16V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 10 mm
Length: 20 mm
Lead Spacing: 5 mm
ESR: 0.02 Ohm
Life: 5000 hours
Temperature Rating: 105C
Ripple Current: 2.18A |
|
|
|

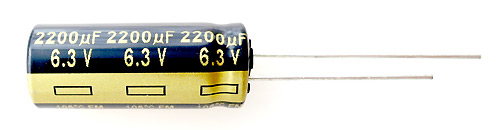

2200uF 6.3V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 10 mm
Length: 25 mm
Lead Spacing: 5 mm
ESR: 0.01 Ohm
Life: 5000 hours
Temperature Rating: 105C
Ripple Current: 2.47A |
|
|
|

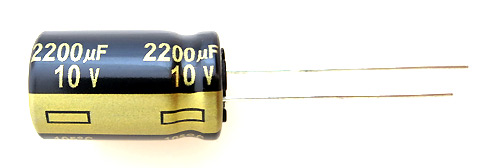

2200uF 10V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 12 mm
Length: 20 mm
Lead Spacing: 5 mm
ESR: 0.01 Ohm
Life: 5000 hours
Temperature Rating: 105C
Ripple Current: 2.6A |
|
|
|

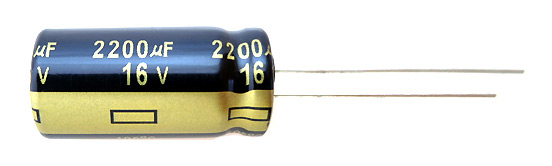

2200uF 16V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 12 mm
Length: 25 mm
Lead Spacing: 5 mm
ESR: 0.02 Ohm
Life: 7000 hours
Temperature Rating: 105C
Ripple Current: 3.19A |
|
|
|

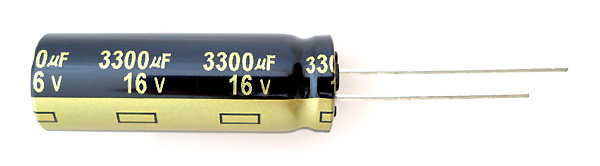

3300uF 16V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 12 mm
Length: 35 mm
Lead Spacing: 5 mm
ESR: 0.01 Ohm
Life: 7000 hours
Temperature Rating: 105C
Ripple Current: 3.75A |
|
|
|

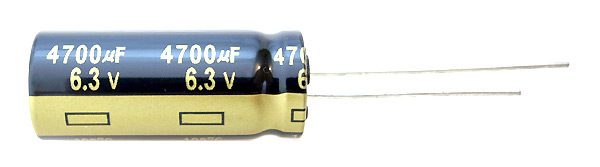

4700uF 6.3V Panasonic FM Capacitor
High quality Japanese Panasonic FM capacitors feature ultra low ESR, low impedance, long lifetime and 105C temperature rating.
Diameter: 12 mm
Length: 30 mm
Lead Spacing: 5 mm
ESR: 0.01 Ohm
Life: 7000 hours
Temperature Rating: 105C
Ripple Current: 3.63A |
|
|
|
|
