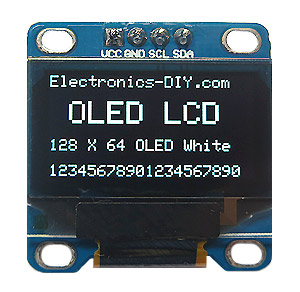

128x64 OLED Display
128x64 OLED Display
Ultrasharp White OLED Display with 128 x 64 resolution. 1mm thin OLED display is self-backlighted, featuring ultra low power consumption and wide 180 degree viewing angles. Displays text with different font sizes, graphics, shapes, custom logos, and animations. Connection is very simple through 4-PIN breadboard compatible male header (VCC, GND, SCL, SDA). Uses only two arduino I2C PINs that can be shared by multiple I2C devices. Includes instructions and sample code for Arduino boards.

     OLED Resolution: 128 x 64
     Wde viewing angles: 180 degree
     Ultra low power consumption
     Self backlighted by OLED display
     Display Color: White / Black
     Displays 8 x 20 text characters using small font size
     Operating voltage: 3 - 5V
     Connection: I2C - 0x3C address
     Lightweight: only 2 grams!
     Dimensions: 27 x 27 x 2 mm / 1' x 1' x 0.07'
Larger Quantities?
Get Quote
Price:$9.95
In Stock:YES
Quantity:

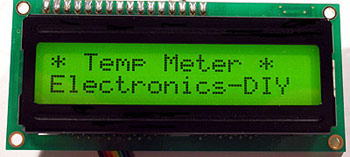

16x2 LCD Display with Green Backlight
16x2 LCD Display with Green Backlight
Specifications
     Characters:    2x 16
     Character Resolution:    5x 7
     Connection: Standard 16 PIN interface
     Backlight: Green
     Voltage Supply: 5V
     Dimensions: 3.6 cm x 8 cm x 1 cm (H x W x D)
     HD44780 Compatible

Interface Connection
PIN 1: Vss - GND
PIN 2: VDD - +5V VCC
PIN 3: Vo - Contrast Adjustment
PIN 4: RS - Reset
PIN 5: R/W - Read/Write
PIN 6: E - Enable Signal
PIN 7: DB0 Data 0
PIN 8: DB1 Data 1
PIN 9: DB2 Data 2
PIN 10: DB3 Data 3
PIN 11: DB4 Data 4
PIN 12: DB5 Data 5
PIN 13: DB6 Data 6
PIN 14: DB7 Data 7
PIN 15: Backlight +5V VCC
PIN 16: Backlight GND
Larger Quantities?
Get Quote
Price:$9.95
In Stock:YES
Quantity:


16x2 LCD Display with Blue Backlight
16x2 LCD Display with Blue Backlight
Specifications
     Characters: 16 x 2
     Character Resolution: 5 x 8
     Connection: Standard 16 PIN interface
     Backlight: White
     Voltage Supply: 5V
     Dimensions: 3.6 cm x 8 cm x 1 cm (H x W x D)
     HD44780 Compatible

Interface Connection
PIN 1: Vss - GND
PIN 2: VDD - +5V VCC
PIN 3: Vo - Contrast Adjustment
PIN 4: RS - Reset
PIN 5: R/W - Read/Write
PIN 6: E - Enable Signal
PIN 7: DB0 Data 0
PIN 8: DB1 Data 1
PIN 9: DB2 Data 2
PIN 10: DB3 Data 3
PIN 11: DB4 Data 4
PIN 12: DB5 Data 5
PIN 13: DB6 Data 6
PIN 14: DB7 Data 7
PIN 15: Backlight +5V VCC
PIN 16: Backlight GND
Larger Quantities?
Get Quote
Price:$9.95
In Stock:YES
Quantity:
